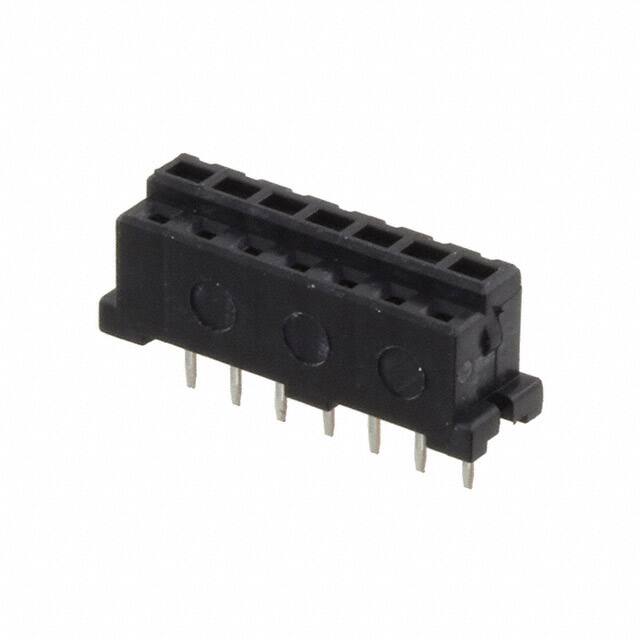

DF3-7S-2DSA(55)

Teknik Özellikler

Çalışma Sıcaklığı

-30°C~85°C

Pozisyon Sayısı

7

Lead Pitch

2mm

Parça Durumu

Active

Akım Değeri

3A

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

Stack Height Mating

6.6mm 7.5mm

ECCN Kodu

EAR99

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Fastening Type

Friction Lock

Sıra Sayısı

1

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Plastic

Yayın Yılı

2004

Kurşunsuz

Lead Free

HTS Kodu

8536.69.40.40

Seri

DF3

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Contact Type

Female Socket

Style

Board to Board or Cable

Contact Finish Post

Tin

RoHS Durumu

RoHS Compliant

Nominal Gerilim

30VAC

Housing Color

Black

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Finish Thickness Post

39.4μin 1.00μm

REACH Uyumluluk Kodu

unknown

Contact Gender

Female

Insulation Height

0.232 5.90mm

Montaj

Through Hole
