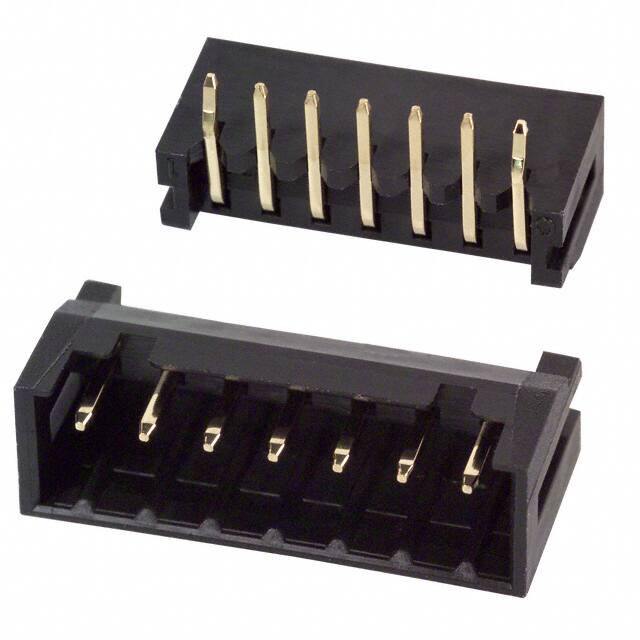

DF3-7P-2DS(01)

Teknik Özellikler

Seri

DF3

Yayın Yılı

2004

Contact Length Post

0.114 2.90mm

Pitch Mating

0.079 2.00mm

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Terminal

Press-Fit, Solder

JESD-609 Kodu

e4

Akım Değeri

3A

Pozisyon Sayısı

7

Body Depth

0.283 inch

Din Conformance

NO

Mixed Contacts

NO

Montaj

Through Hole

Insulation Height

0.197 5.00mm

Contact Gender

Male

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

8.00μin 0.203μm

Kurşunsuz Kodu

yes

Durability

50 Cycles

Nominal Gerilim

100V

Housing Color

Black

Polarization Key

HOUSING SIDE

Contact Resistance

30mOhm

RoHS Durumu

RoHS Compliant

Contact Type

Male Pin

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Lead Free

HTS Kodu

8536.69.40.40

Body Length Or Diameter

0.63 inch

Contact Finish Mating

Gold

Housing Material

Plastic

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Iec Conformance

NO
