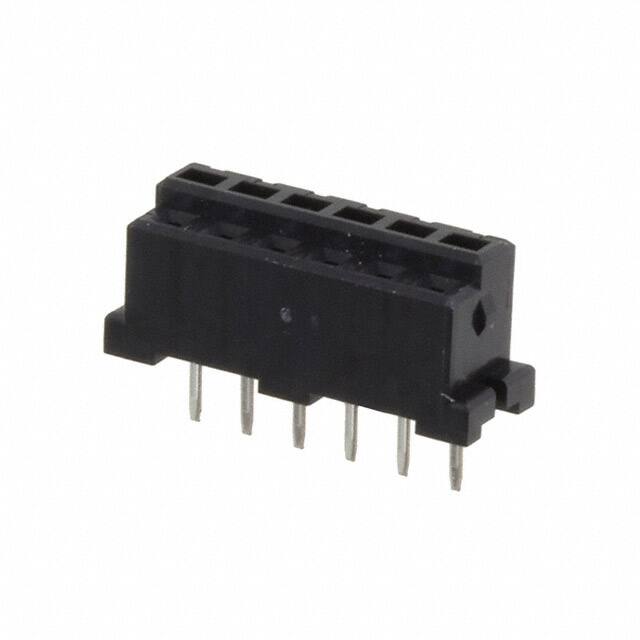

DF3-6S-2DSA(55)

Teknik Özellikler

Orientation

Straight

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Finish Thickness Post

39.4μin 1.00μm

REACH Uyumluluk Kodu

unknown

Contact Gender

Female

Montaj

Through Hole

Insulation Height

0.232 5.90mm

Contact Type

Female Socket

Style

Board to Board or Cable

Contact Finish Post

Tin

RoHS Durumu

RoHS Compliant

Housing Color

Black

Nominal Gerilim

30VAC

Contact Materials

Phosphor Bronze

Sıra Sayısı

1

Pitch Mating

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Fastening Type

Friction Lock

Contact Shape

Square

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Housing Material

Plastic

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Yayın Yılı

2008

Seri

DF3

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-30°C~85°C

Lead Pitch

2mm

Pozisyon Sayısı

6

Parça Durumu

Active

Akım Değeri

3A

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Stack Height Mating

6.6mm 7.5mm

ECCN Kodu

EAR99

Terminal

Solder
