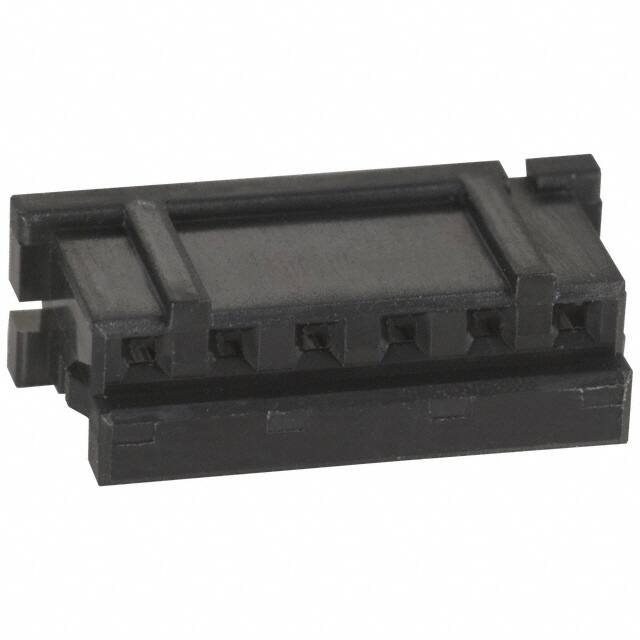

DF3-6S-2C

Teknik Özellikler

Wire Size Min

28 AWG

Operating Temperature Min

-30°C

Seri

DF3

Yayın Yılı

2008

Pozisyon Sayısı

6

Note

Contacts Not Included

Din Conformance

NO

Mixed Contacts

NO

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

JESD-609 Kodu

e3/e4

Operating Temperature Max

85°C

REACH Uyumluluk Kodu

unknown

Option

WITH CABLE ASSEMBLY

Orientation

Straight

Additional Feature

LOW PROFILE

Total Number Of Contacts

6

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Contact Resistance

30mOhm

RoHS Durumu

RoHS Compliant

Contact Type

Female Socket

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Contact Finish Mating

TIN/GOLD

Housing Material

Polyamide

Sıra Sayısı

1

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.079 2.00mm

Montaj Tipi

Free Hanging (In-Line)

Kurşunsuz

Lead Free

Lead Pitch

2mm

Withdrawl Forcemin

.30024 N

Contact Termination

Crimp

Mil Conformance

NO

Wire Size Max

22 AWG

Parça Durumu

Active

Insulation Resistance

1GOhm
