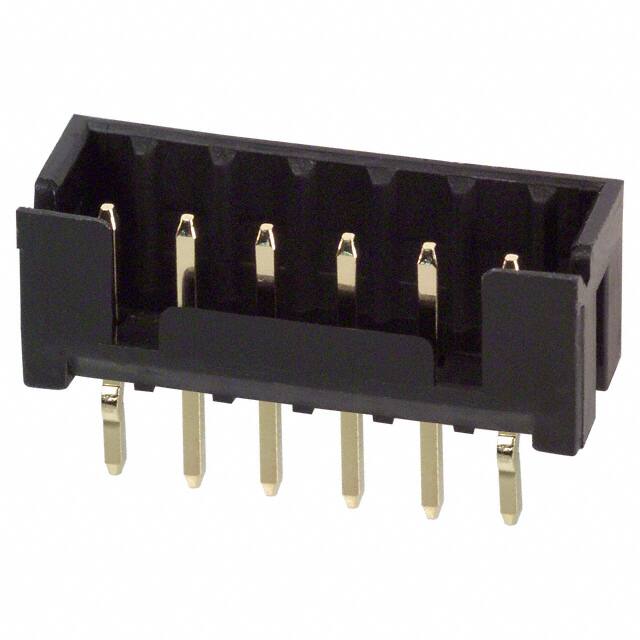

DF3-6P-2DSA(01)

Teknik Özellikler

Contact Type

Male Pin

Style

Board to Board or Cable

Contact Resistance

30mOhm

Polarization Key

POLARIZED HOUSING

Uzunluk

14mm

RoHS Durumu

RoHS Compliant

Housing Color

Black

Nominal Gerilim

100V

Durability

50 Cycles

Kurşunsuz Kodu

yes

Overall Contact Length

0.299 7.60mm

Yükseklik

5mm

Orientation

Straight

Contact Finish Thickness Mating

8.00μin 0.203μm

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

unknown

Contact Gender

Male

Insulation Height

0.197 5.00mm

Montaj

Through Hole

Mixed Contacts

NO

Pozisyon Sayısı

6

Din Conformance

NO

Akım Değeri

3A

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

12 Weeks

Connector Type

Header

Terminal

Press-Fit, Solder

ECCN Kodu

EAR99

Pitch Mating

0.079 2.00mm

Contact Length Post

0.114 2.90mm

Yayın Yılı

2008

Seri

DF3

Depth

5mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

4.3924 N

Number Of Conductors

ONE

Rated Current Signal

3A

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall
