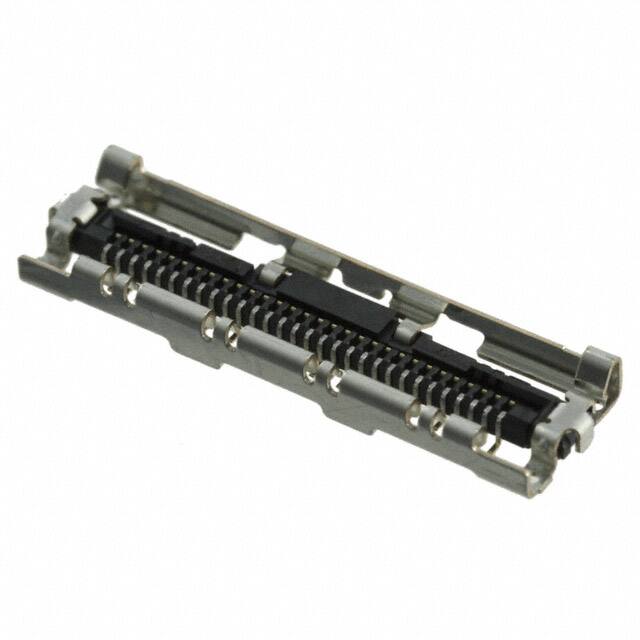

DF36A-30S-0.4V(51)

Teknik Özellikler

JESD-609 Kodu

e4

Insulation Color

Black

Body Depth

0.059 inch

Number Of Conductors

ONE

Seri

DF36

Contact Gender

Female

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.059 1.50mm

Contact Finish Thickness Post

3.90μin 0.099μm

Montaj

Surface Mount

Current Rating Amps

Varies by WireGAuge

Pitch Mating

0.016 0.40mm

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Nominal Gerilim

30VAC

Kurşunsuz Kodu

yes

Contact Resistance

80mOhm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Mating

Gold

Number Of Pcb Rows

1

Insulation Resistance

50MOhm

Reference Standard

UL

Contact Materials

Phosphor Bronze

Mil Conformance

NO

Total Number Of Contacts

30

Pozisyon Sayısı

30

Style

Board to Cable/Wire

Akım Değeri

250mA

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Receptacle

Çalışma Sıcaklığı

-35°C~85°C

Özellikler

Metal Cover, Solder Retention

Parça Durumu

Active

Additional Feature

SHIELDED

Terminal Adımı

0.4mm
