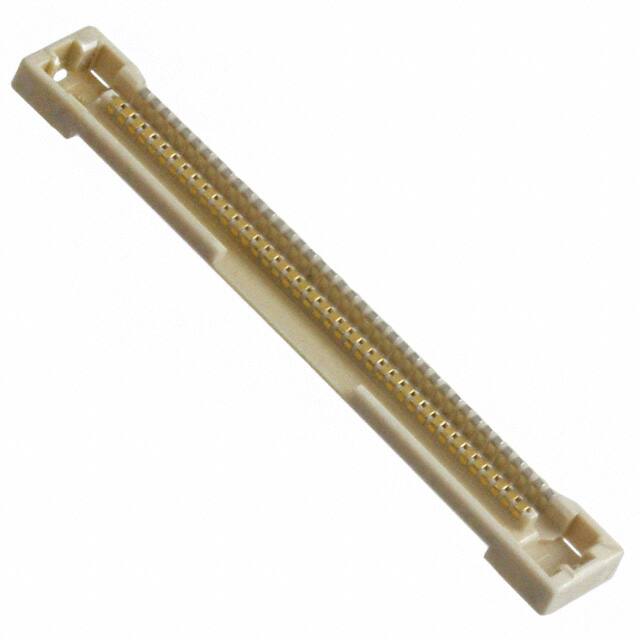

DF36-40P-0.4SD(51)

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Latch Holder

Option

GENERAL PURPOSE

Din Conformance

NO

Sıra Sayısı

1

Ambalaj

Tape & Reel (TR)

Contact Resistance

80mOhm

Kurşunsuz Kodu

yes

Operating Temperature Min

-35°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Resistance

50000000Ohm

Renk

Natural

Wire Type

Discrete

Number Of Pcb Rows

1

ECCN Kodu

EAR99

Contact Materials

PHOSPHOR BRONZE

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Ul Flammability Code

94V-0

Durability

30 Cycles

Pitch

0.016 0.40mm

Mil Conformance

NO

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Mixed Contacts

NO

Contact Type

Outer Shroud Contact

Wire Gauge Min

42 AWG

Total Number Of Contacts

40

Wire Gauge

42-46 AWG

Body Depth

0.059 inch

Pozisyon Sayısı

40

JESD-609 Kodu

e4

Filter Feature

NO

Seri

DF36

Reliability

COMMERCIAL

Number Of Conductors

ONE

Operating Temperature Max

85°C

Wire Gauge Max

46 AWG

Contact Gender

MALE

Connector Type

Plug

Termination Type

SURFACE MOUNT
