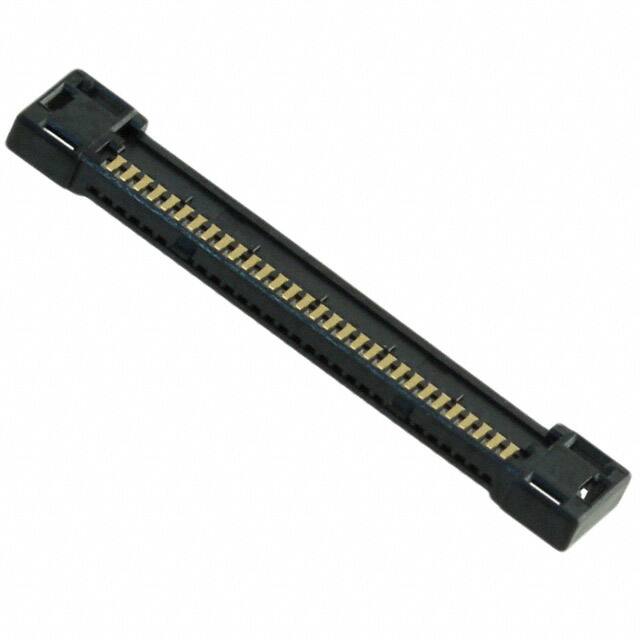

DF36-30P-0.4SD(51)

Teknik Özellikler

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

Fastening Type

Latch Holder

ECCN Kodu

EAR99

Renk

Natural

Wire Type

Discrete

Contact Type

Outer Shroud Contact

Mixed Contacts

NO

Pitch

0.016 0.40mm

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Ul Flammability Code

94V-0

Pozisyon Sayısı

30

Total Number Of Contacts

30

Termination Type

SURFACE MOUNT

Cable Termination

Solder

Body Length Or Diameter

0.654 inch

Connector Type

Plug

Operating Temperature Max

85°C

Reliability

COMMERCIAL

Filter Feature

NO

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Operating Temperature Min

-35°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

80mOhm

REACH Uyumluluk Kodu

unknown

Contact Materials

PHOSPHOR BRONZE

Reference Standard

UL

Insulation Resistance

50000000Ohm

Number Of Pcb Rows

1

Mil Conformance

NO

Body Depth

0.059 inch

JESD-609 Kodu

e4

Wire Gauge

42-46 AWG

Wire Gauge Min

42 AWG

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

MALE
