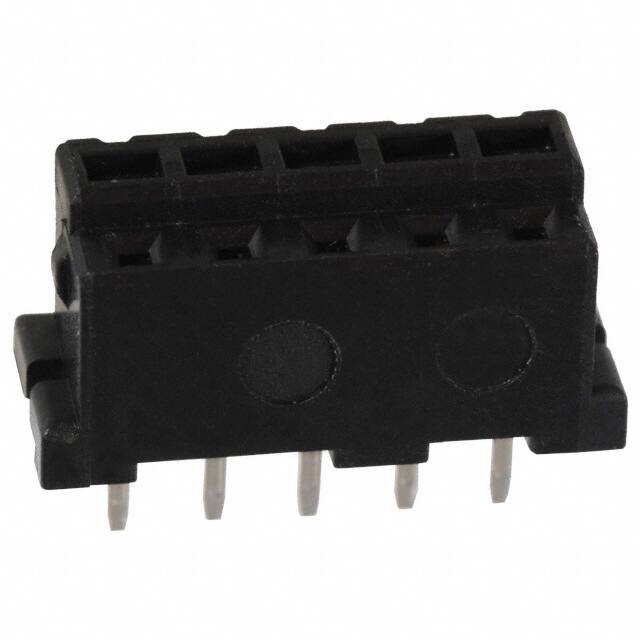

DF3-5S-2DSA(55)

Teknik Özellikler

Terminal

Solder

ECCN Kodu

EAR99

Stack Height Mating

6.6mm 7.5mm

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

3A

Parça Durumu

Active

Pozisyon Sayısı

5

Lead Pitch

2mm

Çalışma Sıcaklığı

-30°C~85°C

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Seri

DF3

Yayın Yılı

2004

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Plastic

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Fastening Type

Friction Lock

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Sıra Sayısı

1

Contact Materials

Phosphor Bronze

Nominal Gerilim

30VAC

Housing Color

Black

RoHS Durumu

RoHS Compliant

Contact Finish Post

Tin

Style

Board to Board or Cable

Contact Type

Female Socket

Insulation Height

0.232 5.90mm

Montaj

Through Hole

Contact Gender

Female

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Thickness Mating

8.00μin 0.203μm
