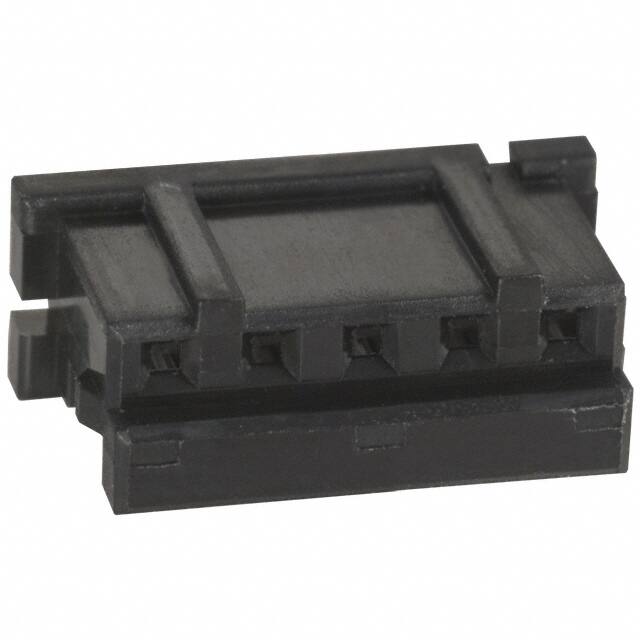

DF3-5S-2C

Teknik Özellikler

Operating Temperature Min

-30°C

Wire Size Min

28 AWG

Yayın Yılı

2008

Seri

DF3

Mixed Contacts

NO

Din Conformance

NO

Note

Contacts Not Included

Body Depth

0.268 inch

Pozisyon Sayısı

5

JESD-609 Kodu

e3/e4

ECCN Kodu

EAR99

Connector Type

Receptacle

Fabrika Tedarik Süresi

12 Weeks

Total Number Of Contacts

5

Orientation

Straight

Additional Feature

LOW PROFILE

Option

WITH CABLE ASSEMBLY

Contact Type

Female Socket

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED HOUSING

Contact Resistance

30mOhm

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Sıra Sayısı

1

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Iec Conformance

NO

Housing Material

Polyamide

Contact Finish Mating

TIN/GOLD

Body Length Or Diameter

0.473 inch

Kurşunsuz

Lead Free

Montaj Tipi

Free Hanging (In-Line)

Wire Size Max

22 AWG

Contact Termination

Crimp

Mil Conformance

NO

Withdrawl Forcemin

.30024 N

Lead Pitch

2mm

Insulation Resistance

1GOhm

Parça Durumu

Active
