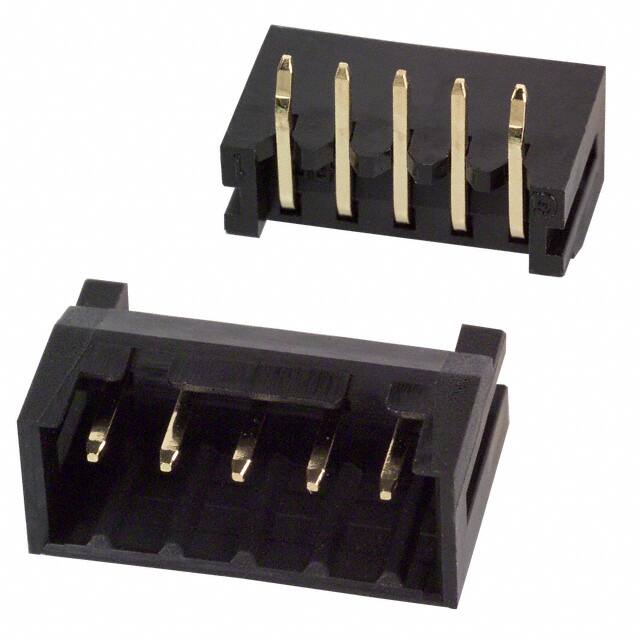

DF3-5P-2DS(01)

Teknik Özellikler

Pitch Mating

0.079 2.00mm

Contact Length Post

0.114 2.90mm

Yayın Yılı

2008

Seri

DF3

Mixed Contacts

NO

Pozisyon Sayısı

5

Body Depth

0.283 inch

Din Conformance

NO

JESD-609 Kodu

e4

Connector Type

Header

Fabrika Tedarik Süresi

11 Weeks

Terminal

Press-Fit, Solder

Current Rating Amps

3A

Contact Finish Thickness Mating

8.00μin 0.203μm

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Contact Gender

Male

Montaj

Through Hole

Insulation Height

0.197 5.00mm

Contact Type

Male Pin

Style

Board to Board or Cable

Contact Resistance

30mOhm

Polarization Key

HOUSING SIDE

RoHS Durumu

RoHS Compliant

Housing Color

Black

Kurşunsuz Kodu

yes

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Sıra Sayısı

1

Body Length Or Diameter

0.472 inch

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Plastic

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole, Right Angle

Insulation Materials

Polyamide (PA), Nylon
