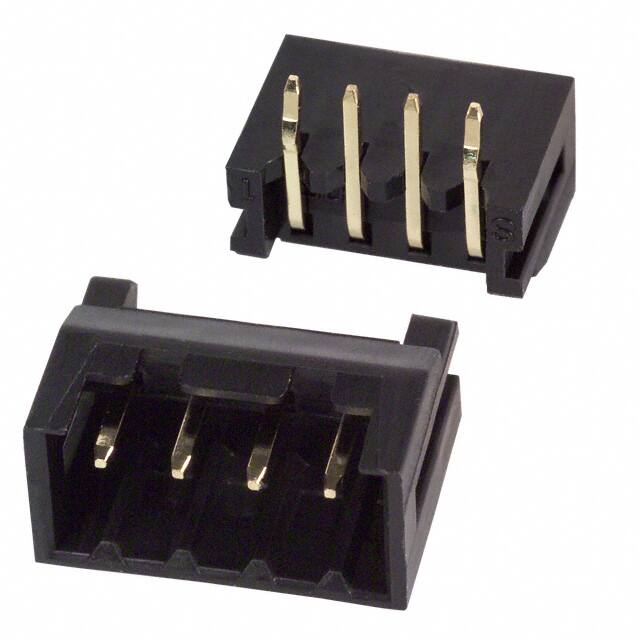

DF3-4P-2DS(01)

Teknik Özellikler

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Filter Feature

NO

Reference Standard

UL, CSA

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Contact Materials

Brass

Rated Current Signal

3A

Shrouding

Shrouded - 4 Wall

Depth

7.2mm

Kurşunsuz

Lead Free

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

1

Iec Conformance

NO

Ambalaj

Bulk

Max Voltage Rating Ac

100V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Contact Finish Mating

Gold

Housing Material

Polyamide

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Lengthmating

0.122 3.10mm

Parça Durumu

Active

Max Current Rating

3A

Dielectric Withstanding Voltage

650VAC V

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~105°C

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Mil Conformance

NO

Contact Gender

Male

Montaj

Through Hole

Insulation Height

0.197 5.00mm

Orientation

Right Angle

Contact Finish Thickness Mating

8.00μin 0.203μm

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown
