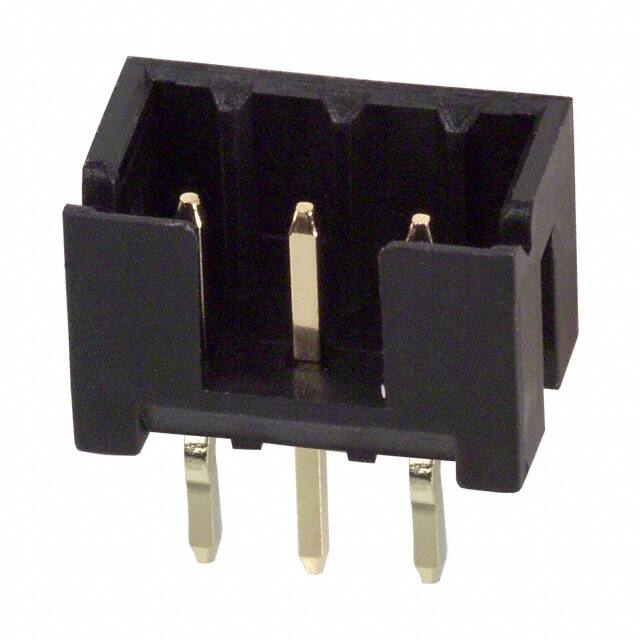

DF3-3P-2DSA(01)

Teknik Özellikler

Option

GENERAL PURPOSE

Number Of Pcb Rows

1

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Straight

Montaj

Through Hole

Insulation Height

0.197 5.00mm

Contact Gender

Male

Uzunluk

8mm

RoHS Durumu

RoHS Compliant

Polarization Key

GUIDE SLOT(S)

Contact Resistance

30mOhm

Style

Board to Board or Cable

Contact Type

Male Pin

Overall Contact Length

0.299 7.60mm

Durability

50 Cycles

Kurşunsuz Kodu

yes

Housing Color

Black

Nominal Gerilim

100V

Contact Length Post

0.114 2.90mm

Pitch Mating

0.079 2.00mm

Seri

DF3

Yayın Yılı

2008

Din Conformance

NO

Pozisyon Sayısı

3

Mixed Contacts

NO

Terminal

Press-Fit, Solder

Connector Type

Header

Fabrika Tedarik Süresi

12 Weeks

JESD-609 Kodu

e4

Akım Değeri

3A

Reference Standard

UL, CSA

Ul Flammability Code

94V-0

Filter Feature

NO

Reliability

COMMERCIAL

Mating Contact Pitch

0.079 inch

Depth

5mm

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass

Rated Current Signal

3A

Number Of Conductors

ONE
