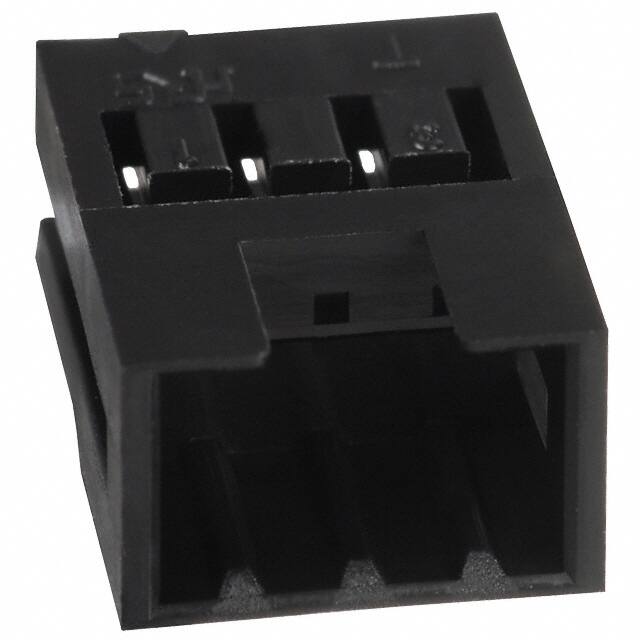

DF3-3EP-2C

Teknik Özellikler

Nominal Gerilim

250V

Yükseklik

5mm

Kurşunsuz Kodu

yes

Contact Type

Male Pin

Uzunluk

8mm

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED RIB(S)

Contact Gender

Male

Montaj

Free Hanging

Reach Svhc

No SVHC

Total Number Of Contacts

3

Orientation

Straight

Option

WITH CABLE ASSEMBLY

Operating Temperature Max

85°C

JESD-609 Kodu

e3

Akım Değeri

3A

Connector Type

Plug

Fabrika Tedarik Süresi

8 Weeks

Mixed Contacts

NO

Din Conformance

NO

Note

Contacts Not Included

Pozisyon Sayısı

3

Yayın Yılı

2008

Seri

DF3

Wire Size Min

28 AWG

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Rated Current Signal

3A

Contact Materials

BRASS

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Filter Feature

NO

Renk

Black

Reference Standard

UL, CSA

Dielectric Withstanding Voltage

650VAC V

Parça Durumu

Active

Wire Size Max

22 AWG

Contact Termination

Crimp

Mil Conformance

NO

Lead Pitch

2mm

Radyasyon Dayanımı

No
