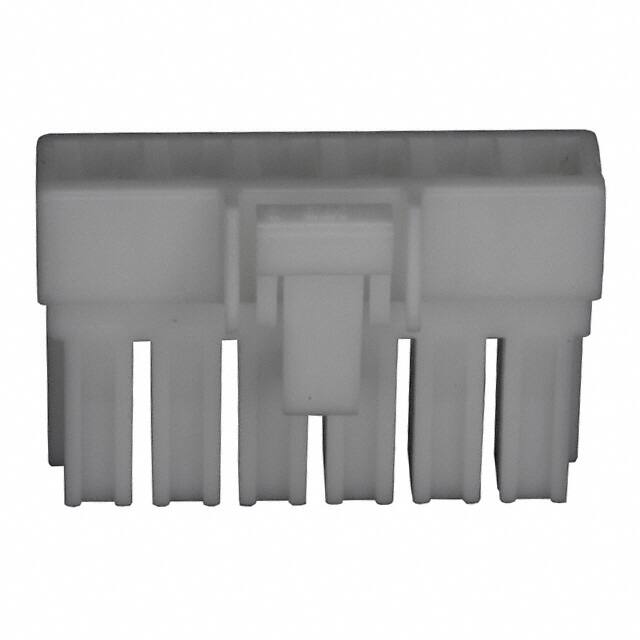

DF33-6S-3.3C

Teknik Özellikler

Contact Type

Female Socket

Depth

14mm

RoHS Durumu

RoHS Compliant

Uzunluk

21mm

Gender

Female

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

COPPER ALLOY

Kurşunsuz Kodu

yes

Orientation

Straight

Filter Feature

NO

Additional Feature

COMPATIBLE CONTACTS: DF33A-2022SCF; DF33A-2022SC

Renk

Natural

Ul Flammability Code

94V-0

Total Number Of Contacts

6

REACH Uyumluluk Kodu

unknown

Option

GENERAL PURPOSE

Montaj

Cable, Free Hanging

Mixed Contacts

NO

Pozisyon Sayısı

6

Note

Contacts Not Included

Din Conformance

NO

Mil Conformance

NO

Contact Termination

Crimp

Parça Durumu

Active

JESD-609 Kodu

e3

Genişlik

7.4mm

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

ECCN Kodu

EAR99

Sıra Sayısı

1

Pitch

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Ambalaj

Bulk

Fastening Type

Latch Lock

Contact Finish Mating

TIN

Housing Material

Polyamide

Seri

EnerBee™ DF33

Montaj Tipi

Free Hanging (In-Line)
