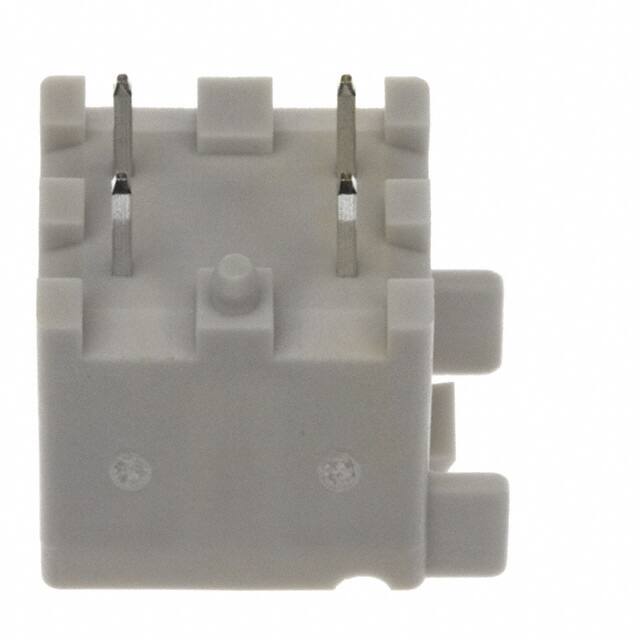

DF33-4DP-3.3DSA(24)

Teknik Özellikler

Montaj

Through Hole

Insulation Height

0.453 11.50mm

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

unknown

Filter Feature

NO

Orientation

Straight

Shrouding

Shrouded - 4 Wall

Kurşunsuz Kodu

yes

Contact Materials

Copper Alloy

Nominal Gerilim

500V

RoHS Durumu

RoHS Compliant

Özellikler

Board Guide

Style

Board to Cable/Wire

Row Spacing Mating

0.228 (5.80mm)

Contact Type

Male Pin

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Seri

EnerBee™ DF33

Insulation Color

Natural

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Polyamide

Contact Finish Mating

Tin

Contact Length Post

0.118 3.00mm

Pitch Mating

0.130 3.30mm

Contact Shape

Square

Fastening Type

Locking Ramp

Ambalaj

Tray

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Terminal

Solder

Stack Height Mating

17.6mm

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

5A

JESD-609 Kodu

e3

Terminal Adımı

3.3mm

Parça Durumu

Active

Mil Conformance

NO
