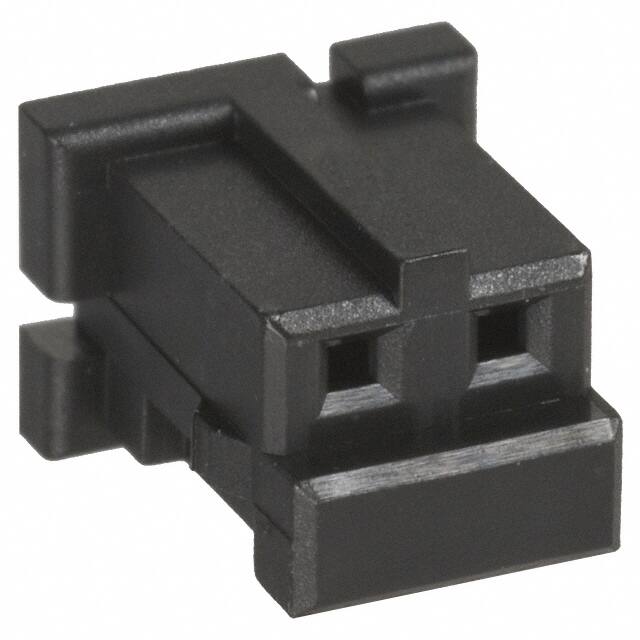

DF3-2S-2C

Teknik Özellikler

Ul Flammability Code

94V-0

Total Number Of Contacts

2

Orientation

Straight

Renk

Black

Additional Feature

LOW PROFILE

Filter Feature

NO

REACH Uyumluluk Kodu

unknown

Reference Standard

UL, CSA

Option

WITH CABLE ASSEMBLY

Reliability

COMMERCIAL

Contact Type

Female Socket

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED HOUSING

Contact Resistance

30mOhm

Voltage Rated Ac

30V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

PHOSPHOR BRONZE

Mounting Option1

LOCKING

Rated Current Signal

3A

Kurşunsuz Kodu

yes

Operating Temperature Min

-30°C

Sıra Sayısı

1

Pitch

0.079 2.00mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Housing Material

Polyamide

Contact Finish Mating

TIN/GOLD

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Yayın Yılı

2008

Montaj Tipi

Free Hanging (In-Line)

Seri

DF3

Mixed Contacts

NO

Contact Termination

Crimp

Mil Conformance

NO

Din Conformance

NO

Note

Contacts Not Included

Lead Pitch

2mm

Pozisyon Sayısı

2
