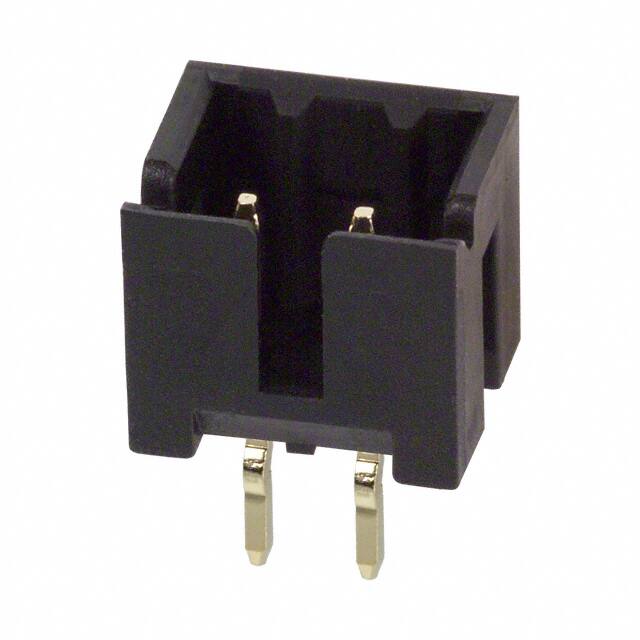

DF3-2P-2DSA(01)

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Lead Pitch

2mm

Dielectric Withstanding Voltage

650VAC V

Contact Lengthmating

0.122 3.10mm

Parça Durumu

Active

Max Current Rating

3A

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Contact Shape

Square

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

100V

Ambalaj

Bulk

Iec Conformance

NO

Housing Material

Polyamide

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Kurşunsuz

Lead Free

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

Depth

5mm

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass

Rated Current Signal

3A

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Mixed Contacts

NO

Din Conformance

NO

Pozisyon Sayısı

2

JESD-609 Kodu

e4

Akım Değeri

3A

Terminal

Press-Fit, Solder

Connector Type

Header
