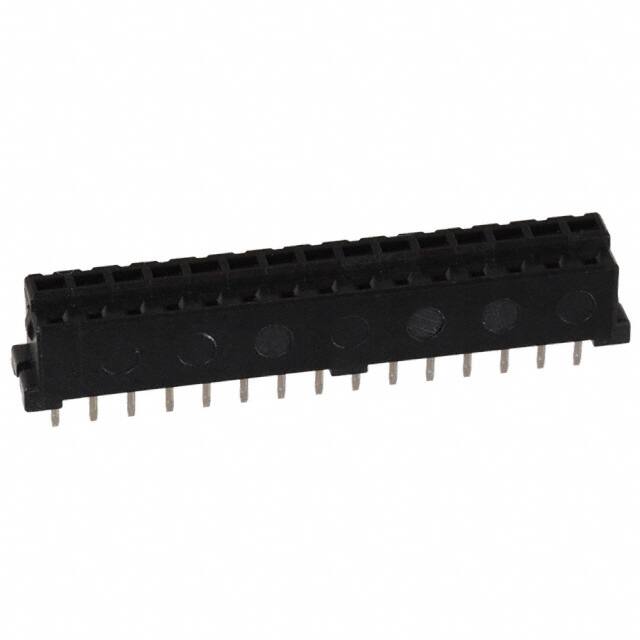

DF3-15S-2DSA(55)

Teknik Özellikler

Seri

DF3

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Yayın Yılı

2004

HTS Kodu

8536.69.40.40

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Fastening Type

Friction Lock

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Stack Height Mating

6.6mm 7.5mm

Terminal

Solder

Parça Durumu

Active

Akım Değeri

3A

Lead Pitch

2mm

Pozisyon Sayısı

15

Çalışma Sıcaklığı

-30°C~85°C

Insulation Height

0.232 5.90mm

Montaj

Through Hole

Contact Gender

Female

Contact Finish Thickness Post

39.4μin 1.00μm

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Materials

Phosphor Bronze

Nominal Gerilim

30VAC

Housing Color

Black

Contact Finish Post

Tin

RoHS Durumu

RoHS Compliant

Contact Type

Female Socket

Style

Board to Board or Cable
