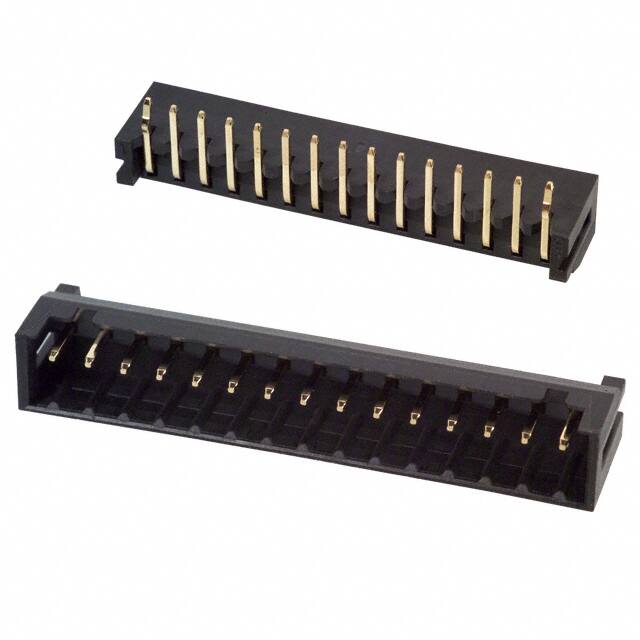

DF3-15P-2DS(01)

Teknik Özellikler

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

4.3924 N

Shrouding

Shrouded - 4 Wall

Rated Current Signal

3A

Contact Materials

Brass

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Dielectric Withstanding Voltage

650VAC V

Parça Durumu

Active

Contact Lengthmating

0.122 3.10mm

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Plastic

Contact Finish Mating

Gold

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole, Right Angle

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant

Contact Resistance

30mOhm

Polarization Key

HOUSING SIDE

Nominal Gerilim

100V

Housing Color

Black
