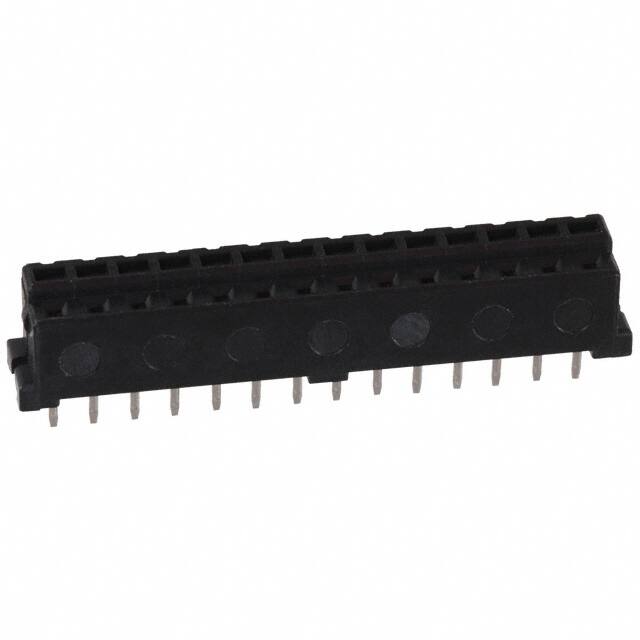

DF3-14S-2DSA(25)

Teknik Özellikler

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

Seri

DF3

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Yayın Yılı

2004

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Finish Mating

Tin

Contact Length Post

0.118 3.00mm

Sıra Sayısı

1

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Fastening Type

Friction Lock

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Stack Height Mating

6.6mm 7.5mm

Terminal

Solder

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

3A

Parça Durumu

Active

Lead Pitch

2mm

Pozisyon Sayısı

14

Çalışma Sıcaklığı

-30°C~85°C

Montaj

Through Hole

Insulation Height

0.232 5.90mm

Contact Gender

Female

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Finish Thickness Mating

78.7μin 2.00μm

Orientation

Straight

Contact Materials

Phosphor Bronze

Housing Color

Black

Nominal Gerilim

30VAC

RoHS Durumu

RoHS Compliant

Style

Board to Board or Cable

Contact Type

Female Socket
