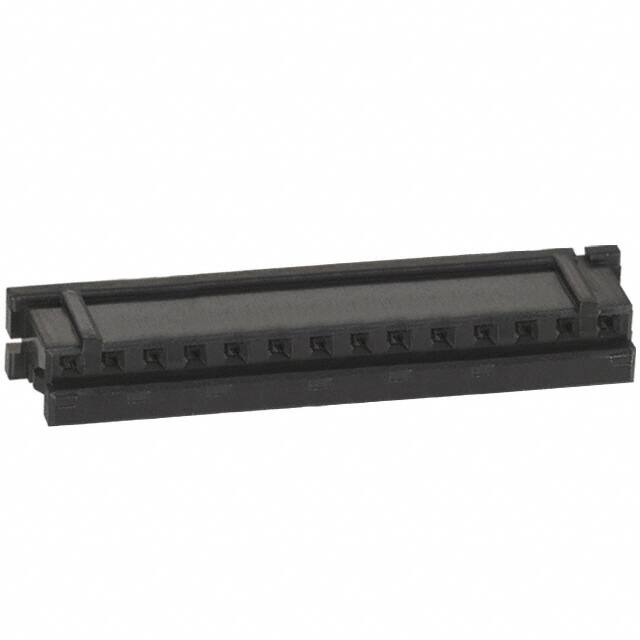

DF3-14S-2C

Teknik Özellikler

Ul Flammability Code

94V-0

Renk

Black

Filter Feature

NO

Reference Standard

UL, CSA

Reliability

COMMERCIAL

Contact Plating

Gold, Tin

Depth

6.8mm

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

PHOSPHOR BRONZE

Rated Current Signal

3A

Sıra Sayısı

1

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Iec Conformance

NO

Housing Material

Polyamide

Contact Finish Mating

TIN/GOLD

Kurşunsuz

Lead Free

Montaj Tipi

Free Hanging (In-Line)

Wire Size Max

22 AWG

Mil Conformance

NO

Contact Termination

Crimp

Lead Pitch

2mm

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

650VAC V

Parça Durumu

Active

Total Number Of Contacts

14

Orientation

Straight

Additional Feature

LOW PROFILE

Option

WITH CABLE ASSEMBLY

Contact Gender

Female

Montaj

Cable, Free Hanging

Contact Type

Female Socket

Uzunluk

30mm

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED RIB(S)

Contact Resistance

30mOhm

Nominal Gerilim

250V

Yükseklik

4.6mm
