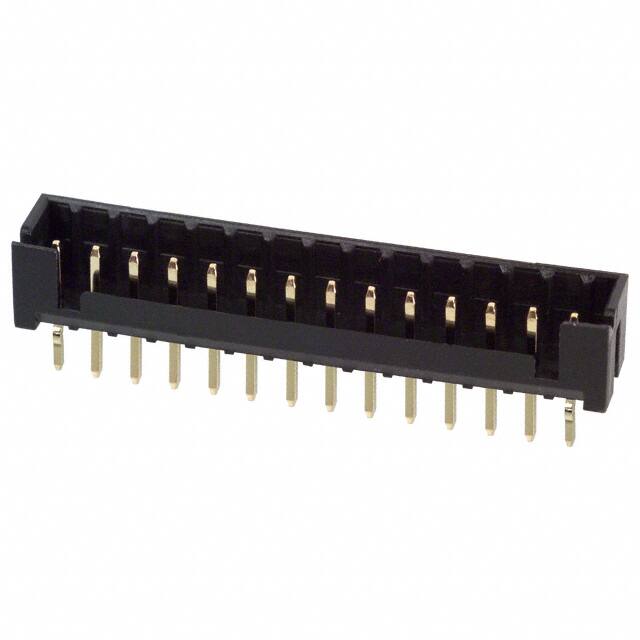

DF3-14P-2DSA(01)

Teknik Özellikler

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Contact Materials

Brass

Rated Current Signal

3A

Shrouding

Shrouded - 4 Wall

Filter Feature

NO

Ul Flammability Code

94V-0

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-55°C~105°C

Lead Pitch

2mm

Radyasyon Dayanımı

No

Mil Conformance

NO

Contact Lengthmating

0.122 3.10mm

Insulation Resistance

1GOhm

Parça Durumu

Active

Dielectric Withstanding Voltage

650VAC V

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Contact Finish Mating

Gold

Housing Material

Polyamide

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

Contact Type

Male Pin

Style

Board to Board or Cable

Polarization Key

GUIDE SLOT(S)

Contact Resistance

30mOhm

RoHS Durumu

RoHS Compliant

Nominal Gerilim

100V

Housing Color

Black
