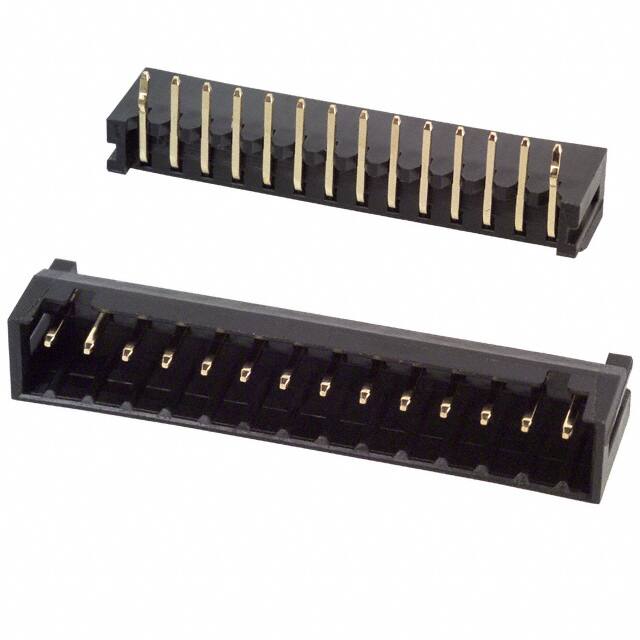

DF3-14P-2DS(01)

Teknik Özellikler

Orientation

Right Angle

Contact Finish Thickness Mating

8.00μin 0.203μm

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Option

GENERAL PURPOSE

Contact Gender

Male

Montaj

Through Hole

Insulation Height

0.197 5.00mm

Contact Type

Male Pin

Style

Board to Board or Cable

Polarization Key

HOUSING SIDE

Contact Resistance

30mOhm

RoHS Durumu

RoHS Compliant

Housing Color

Black

Nominal Gerilim

100V

Durability

50 Cycles

Kurşunsuz Kodu

yes

Pitch Mating

0.079 2.00mm

Contact Length Post

0.114 2.90mm

Yayın Yılı

2008

Seri

DF3

Mixed Contacts

NO

Body Depth

0.283 inch

Pozisyon Sayısı

14

Din Conformance

NO

JESD-609 Kodu

e4

Akım Değeri

3A

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Terminal

Press-Fit, Solder

Filter Feature

NO

Ul Flammability Code

94V-0

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Contact Materials

Brass

Rated Current Signal

3A
