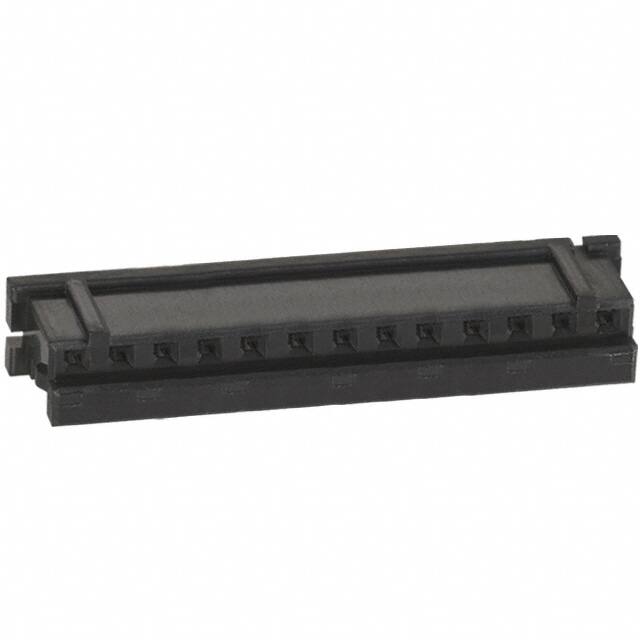

DF3-13S-2C

Teknik Özellikler

Kurşunsuz

Lead Free

Montaj Tipi

Free Hanging (In-Line)

Sıra Sayısı

1

Iec Conformance

NO

Ambalaj

Bulk

Max Voltage Rating Ac

100V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.079 2.00mm

Housing Material

Polyamide

Contact Finish Mating

TIN/GOLD

Wire Gauge Max

28 AWG

Max Current Rating

3A

Parça Durumu

Active

Min. Çalışma Sıcaklığı

-30°C

Contact Termination

Crimp

Mil Conformance

NO

Withdrawl Forcemin

.3058 N

Radyasyon Dayanımı

No

Lead Pitch

2mm

Wire Gauge Min

22 AWG

Reliability

COMMERCIAL

Contact Plating

Gold, Tin

Ul Flammability Code

94V-0

Renk

Black

Filter Feature

NO

Reference Standard

UL, CSA

Gender

Female

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

PHOSPHOR BRONZE

Depth

6.8mm

Yayın Yılı

2004

Seri

DF3

Akım Değeri

3A

JESD-609 Kodu

e3/e4

Genişlik

4.6mm

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Mixed Contacts

NO

Note

Contacts Not Included
