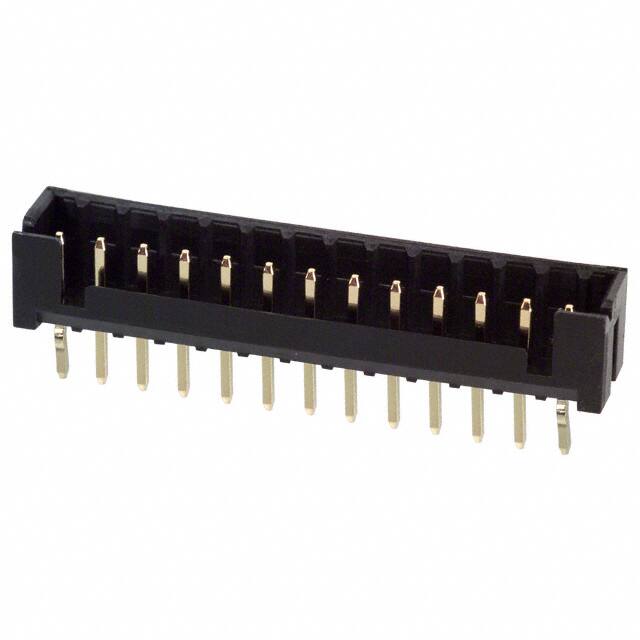

DF3-13P-2DSA(01)

Teknik Özellikler

Dielectric Withstanding Voltage

650VAC V

Parça Durumu

Active

Contact Lengthmating

0.122 3.10mm

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Ambalaj

Bulk

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Sıra Sayısı

1

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Polyamide

Contact Finish Mating

Gold

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

4.3924 N

Shrouding

Shrouded - 4 Wall

Rated Current Signal

3A

Contact Materials

Brass

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL, CSA

Akım Değeri

3A

JESD-609 Kodu

e4

Terminal

Press-Fit, Solder

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Mixed Contacts

NO

Din Conformance

NO

Pozisyon Sayısı

13
