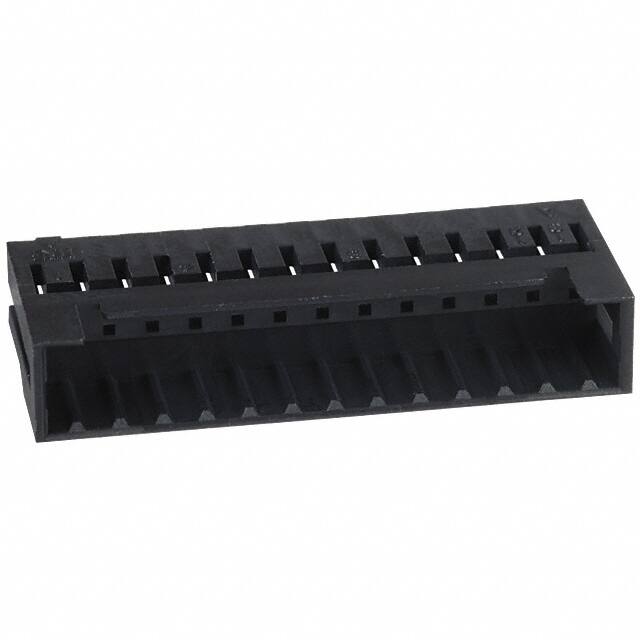

DF3-13EP-2C

Teknik Özellikler

Contact Materials

BRASS

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

4.3924 N

Reference Standard

UL, CSA

Ul Flammability Code

94V-0

Renk

Black

Filter Feature

NO

Reliability

COMMERCIAL

Contact Termination

Crimp

Mil Conformance

NO

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Wire Size Max

22 AWG

Parça Durumu

Active

Housing Material

Polyamide

Contact Finish Mating

TIN

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Iec Conformance

NO

Sıra Sayısı

1

Montaj Tipi

Free Hanging (In-Line)

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Uzunluk

28mm

RoHS Durumu

RoHS Compliant

Polarization Key

HOUSING SIDE

Contact Type

Male Pin

Yükseklik

5mm

Kurşunsuz Kodu

yes

Nominal Gerilim

100V

Option

WITH CABLE ASSEMBLY

REACH Uyumluluk Kodu

unknown

Total Number Of Contacts

13

Montaj

Free Hanging

Contact Gender

Male

Din Conformance

NO

Note

Contacts Not Included

Body Depth

0.437 inch

Pozisyon Sayısı

13
