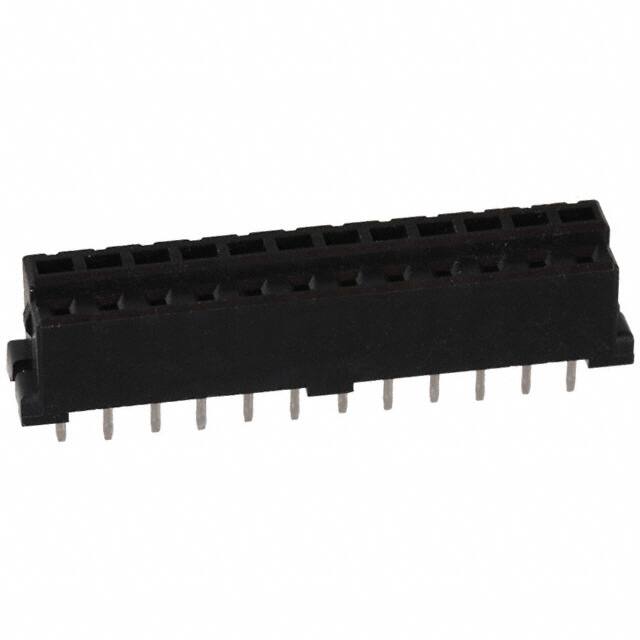

DF3-12S-2DSA(25)

Teknik Özellikler

Style

Board to Board or Cable

Contact Type

Female Socket

RoHS Durumu

RoHS Compliant

Nominal Gerilim

30VAC

Housing Color

Black

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

78.7μin 2.00μm

Orientation

Straight

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Gender

Female

Insulation Height

0.232 5.90mm

Montaj

Through Hole

Çalışma Sıcaklığı

-30°C~85°C

Pozisyon Sayısı

12

Lead Pitch

2mm

Akım Değeri

3A

Parça Durumu

Active

Terminal

Solder

ECCN Kodu

EAR99

Stack Height Mating

6.6mm 7.5mm

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Fastening Type

Friction Lock

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Plastic

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Tin

HTS Kodu

8536.69.40.40

Yayın Yılı

2004

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Seri

DF3
