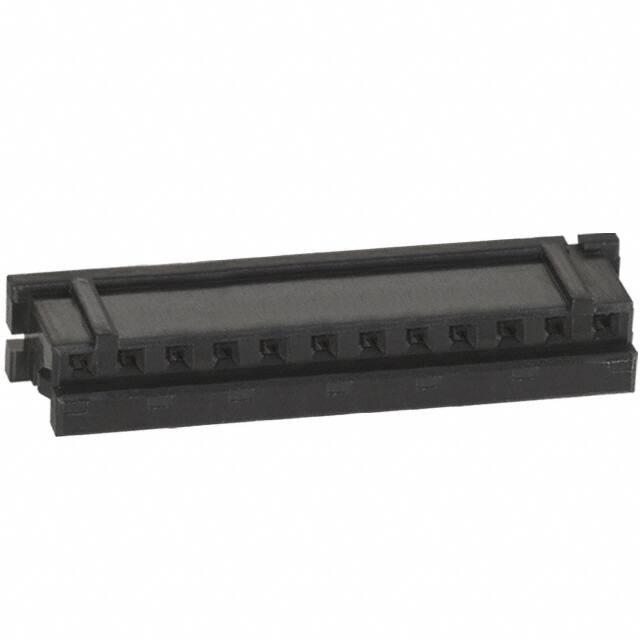

DF3-12S-2C

Teknik Özellikler

Operating Temperature Min

-30°C

Wire Size Min

28 AWG

Yayın Yılı

2008

Seri

DF3

Mixed Contacts

NO

Din Conformance

NO

Note

Contacts Not Included

Body Depth

0.268 inch

Pozisyon Sayısı

12

JESD-609 Kodu

e3/e4

Operating Temperature Max

85°C

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

8 Weeks

Connector Type

Receptacle

Total Number Of Contacts

12

Orientation

Straight

Additional Feature

LOW PROFILE

REACH Uyumluluk Kodu

unknown

Option

WITH CABLE ASSEMBLY

Reach Svhc

No SVHC

Contact Type

Female Socket

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED HOUSING

Contact Resistance

30mOhm

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Sıra Sayısı

1

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Iec Conformance

NO

Housing Material

Polyamide

Contact Finish Mating

TIN/GOLD

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Montaj Tipi

Free Hanging (In-Line)

Wire Size Max

22 AWG

Contact Termination

Crimp

Mil Conformance

NO

Withdrawl Forcemin

.30024 N
