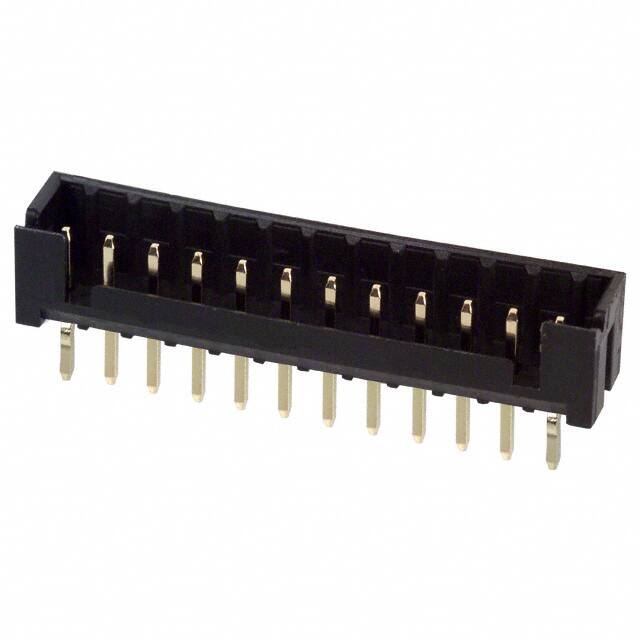

DF3-12P-2DSA(01)

Teknik Özellikler

Rated Current Signal

3A

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

4.3924 N

Number Of Conductors

ONE

Reliability

COMMERCIAL

Mating Contact Pitch

0.079 inch

Reference Standard

UL, CSA

Filter Feature

NO

Ul Flammability Code

94V-0

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Contact Lengthmating

0.122 3.10mm

Dielectric Withstanding Voltage

650VAC V

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~105°C

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Kurşunsuz

Lead Free

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Polyamide

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Durability

50 Cycles

Overall Contact Length

0.299 7.60mm

Yükseklik

5mm

Nominal Gerilim

100V

Housing Color

Black

Contact Resistance

30mOhm

Polarization Key

HOUSING SIDE
