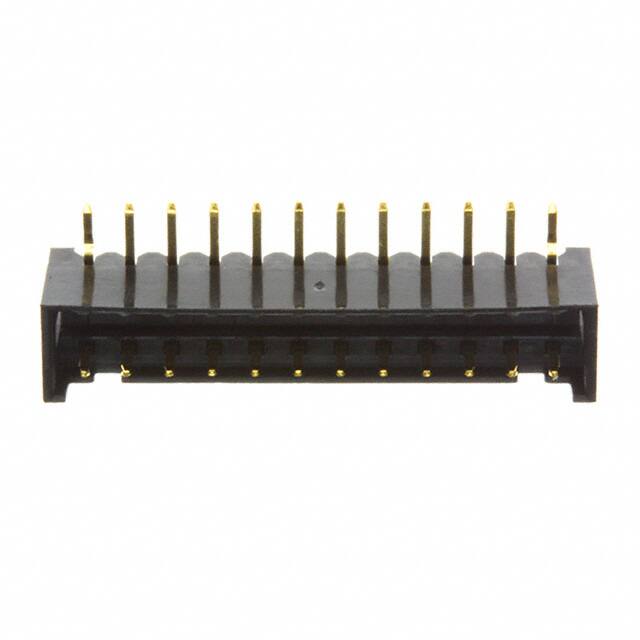

DF3-12P-2DS(01)

Teknik Özellikler

Pitch Mating

0.079 2.00mm

Contact Length Post

0.114 2.90mm

Yayın Yılı

2004

Seri

DF3

Mixed Contacts

NO

Body Depth

0.283 inch

Pozisyon Sayısı

12

Din Conformance

NO

Akım Değeri

3A

JESD-609 Kodu

e4

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Terminal

Press-Fit, Solder

ECCN Kodu

EAR99

Orientation

Right Angle

Contact Finish Thickness Mating

8.00μin 0.203μm

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

unknown

Contact Gender

Male

Insulation Height

0.197 5.00mm

Montaj

Through Hole

Contact Type

Male Pin

Style

Board to Board or Cable

Contact Resistance

30mOhm

Polarization Key

HOUSING SIDE

RoHS Durumu

RoHS Compliant

Housing Color

Black

Nominal Gerilim

100V

Durability

50 Cycles

Kurşunsuz Kodu

yes

Contact Shape

Square

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Sıra Sayısı

1

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All
