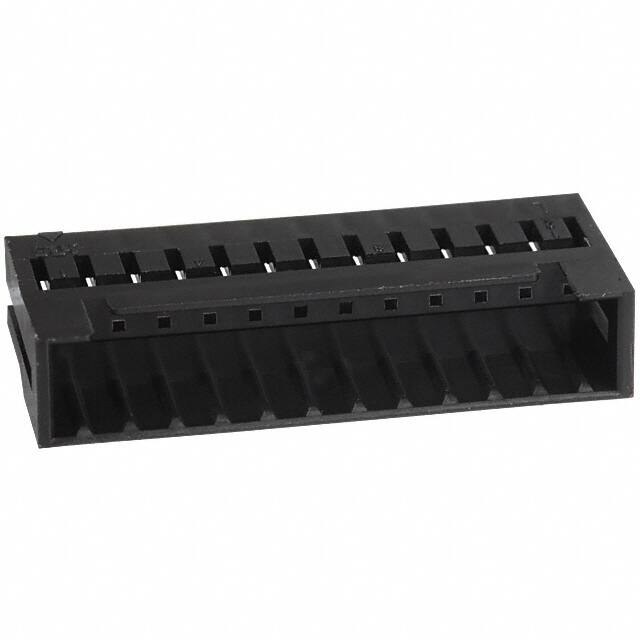

DF3-12EP-2C

Teknik Özellikler

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Contact Termination

Crimp

Mil Conformance

NO

Wire Size Max

22 AWG

Parça Durumu

Active

Contact Finish Mating

TIN

Housing Material

Polyamide

Sıra Sayısı

1

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.079 2.00mm

Montaj Tipi

Free Hanging (In-Line)

Kurşunsuz

Lead Free

HTS Kodu

8536.69.40.40

Depth

5mm

Contact Materials

BRASS

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reference Standard

UL, CSA

Renk

Black

Filter Feature

NO

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Pozisyon Sayısı

12

Din Conformance

NO

Note

Contacts Not Included

Mixed Contacts

NO

Fabrika Tedarik Süresi

8 Weeks

Connector Type

Plug

ECCN Kodu

EAR99

Akım Değeri

3A

JESD-609 Kodu

e3

Genişlik

11.1mm

Operating Temperature Max

85°C

Wire Size Min

28 AWG

Operating Temperature Min

-30°C

Seri

DF3

Yayın Yılı

2004
