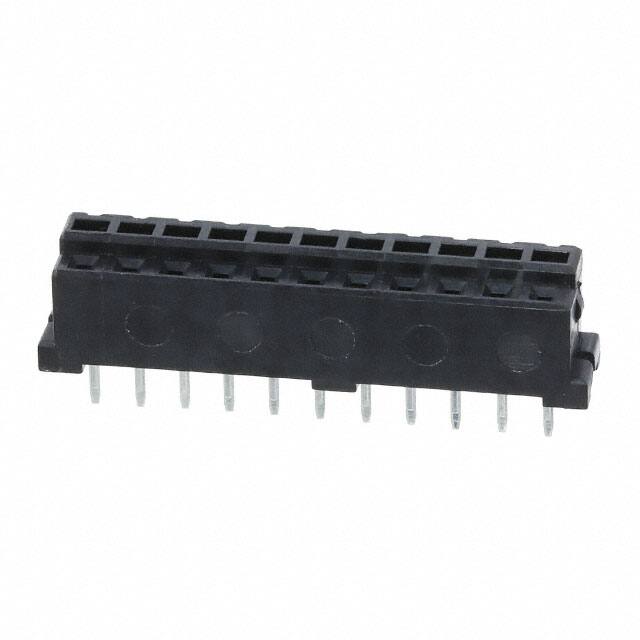

DF3-11S-2DSA(55)

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Height

0.232 5.90mm

Montaj

Through Hole

Contact Gender

Female

RoHS Durumu

RoHS Compliant

Contact Finish Post

Tin

Style

Board to Board or Cable

Contact Type

Female Socket

Contact Materials

Phosphor Bronze

Nominal Gerilim

30VAC

Housing Color

Black

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Sıra Sayısı

1

Contact Shape

Square

Fastening Type

Friction Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

Seri

DF3

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Yayın Yılı

2004

Lead Pitch

2mm

Pozisyon Sayısı

11

Çalışma Sıcaklığı

-30°C~85°C

Stack Height Mating

6.6mm 7.5mm

ECCN Kodu

EAR99

Terminal

Solder

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

3A

Parça Durumu

Active
