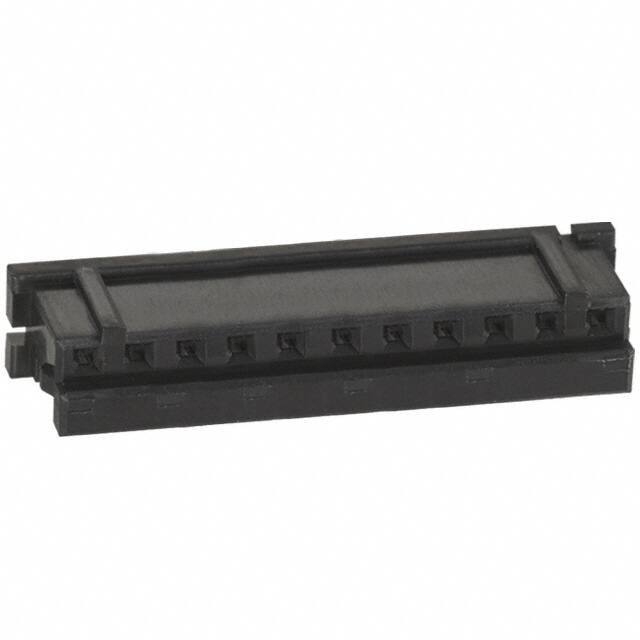

DF3-11S-2C

Teknik Özellikler

Nominal Gerilim

100V

Yükseklik

4.6mm

Kurşunsuz Kodu

yes

Contact Type

Female Socket

Uzunluk

24mm

RoHS Durumu

RoHS Compliant

Polarization Key

HOUSING SIDE

Contact Gender

Female

Montaj

Cable, Free Hanging

Total Number Of Contacts

11

Additional Feature

LOW PROFILE

Orientation

Straight

Option

WITH CABLE ASSEMBLY

Operating Temperature Max

85°C

Genişlik

4.6mm

JESD-609 Kodu

e3/e4

Akım Değeri

3A

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Mixed Contacts

NO

Din Conformance

NO

Note

Contacts Not Included

Pozisyon Sayısı

11

Yayın Yılı

2008

Seri

DF3

Operating Temperature Min

-30°C

Wire Size Min

28 AWG

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

4.3924 N

Contact Materials

PHOSPHOR BRONZE

Depth

6.8mm

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Filter Feature

NO

Renk

Black

Reference Standard

UL, CSA

Parça Durumu

Active

Wire Size Max

22 AWG

Contact Termination

Crimp

Mil Conformance

NO
