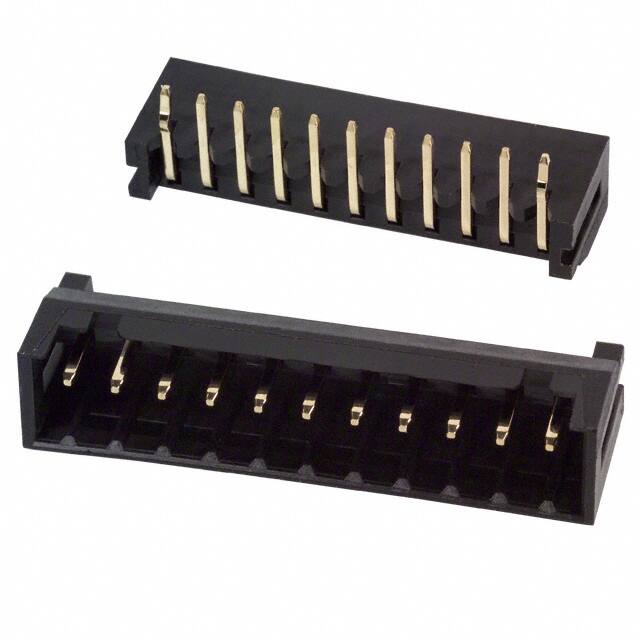

DF3-11P-2DS(01)

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~105°C

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Mil Conformance

NO

Contact Lengthmating

0.122 3.10mm

Parça Durumu

Active

Dielectric Withstanding Voltage

650VAC V

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Ambalaj

Bulk

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Body Length Or Diameter

0.945 inch

Contact Finish Mating

Gold

Housing Material

Plastic

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole, Right Angle

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Contact Materials

Brass

Rated Current Signal

3A

Shrouding

Shrouded - 4 Wall

Filter Feature

NO

Ul Flammability Code

94V-0

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Mixed Contacts

NO

Pozisyon Sayısı

11

Body Depth

0.283 inch

Din Conformance

NO

Akım Değeri

3A

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

10 Weeks
