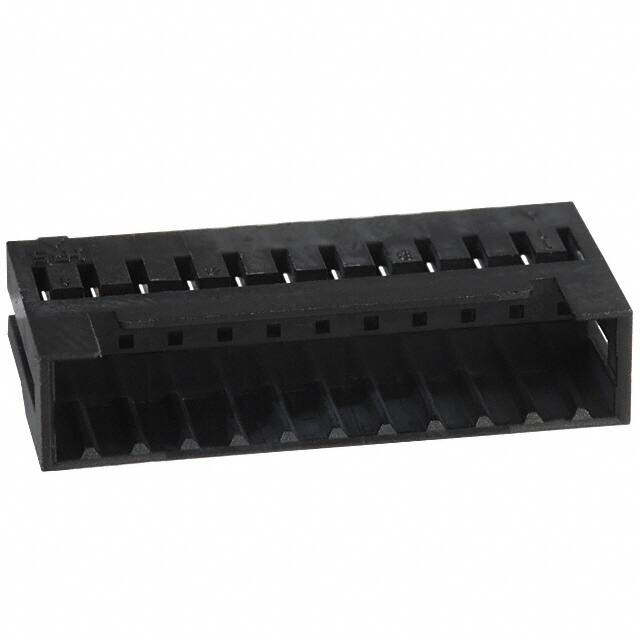

DF3-11EP-2C

Teknik Özellikler

Contact Materials

BRASS

Kurşunsuz Kodu

yes

Insertion Forcemax

4.3924 N

Nominal Gerilim

100V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Polarization Key

HOUSING SIDE

RoHS Durumu

RoHS Compliant

Contact Type

Male Pin

Reliability

COMMERCIAL

Montaj

Free Hanging

REACH Uyumluluk Kodu

unknown

Reference Standard

UL, CSA

Option

WITH CABLE ASSEMBLY

Renk

Black

Filter Feature

NO

Ul Flammability Code

94V-0

Total Number Of Contacts

11

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Plug

Parça Durumu

Active

Akım Değeri

3A

JESD-609 Kodu

e3

Operating Temperature Max

85°C

Lead Pitch

2mm

Withdrawl Forcemin

.3058 N

Body Depth

0.437 inch

Pozisyon Sayısı

11

Contact Termination

Crimp

Mil Conformance

NO

Din Conformance

NO

Note

Contacts Not Included

Mixed Contacts

NO

Wire Size Max

22 AWG

Seri

DF3

Montaj Tipi

Free Hanging (In-Line)

Kurşunsuz

Lead Free

Yayın Yılı

2004

Contact Finish Mating

TIN

Body Length Or Diameter

0.945 inch

Housing Material

Polyamide
