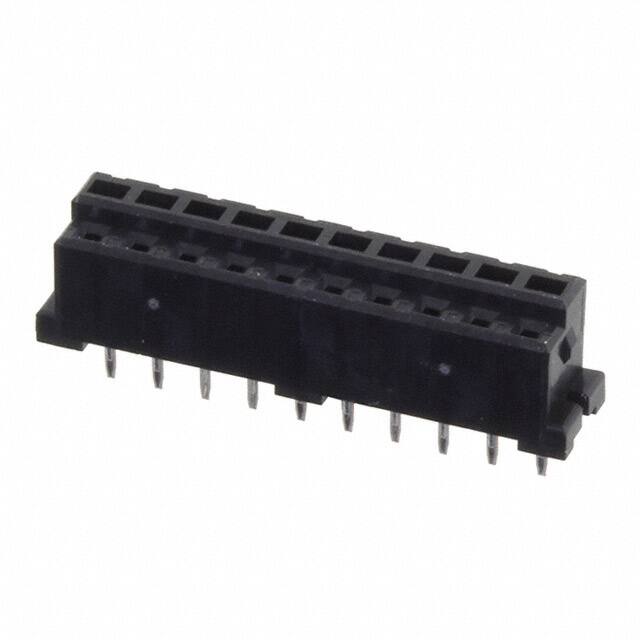

DF3-10S-2DSA(55)

Teknik Özellikler

Insulation Height

0.232 5.90mm

Montaj

Through Hole

Contact Gender

Female

Contact Finish Thickness Post

39.4μin 1.00μm

REACH Uyumluluk Kodu

unknown

Orientation

Straight

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Materials

Phosphor Bronze

Nominal Gerilim

30VAC

Housing Color

Black

Contact Finish Post

Tin

RoHS Durumu

RoHS Compliant

Contact Type

Female Socket

Style

Board to Board or Cable

Seri

DF3

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Yayın Yılı

2004

HTS Kodu

8536.69.40.40

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Housing Material

Plastic

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Fastening Type

Friction Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Stack Height Mating

6.6mm 7.5mm

Terminal

Solder

Parça Durumu

Active

Akım Değeri

3A

Lead Pitch

2mm

Pozisyon Sayısı

10
