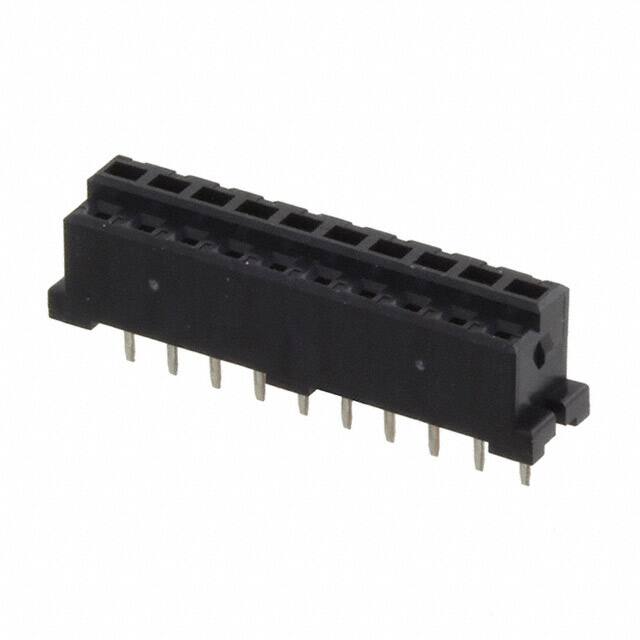

DF3-10S-2DSA(25)

Teknik Özellikler

Contact Finish Thickness Post

78.7μin 2.00μm

REACH Uyumluluk Kodu

unknown

Orientation

Straight

Contact Finish Thickness Mating

78.7μin 2.00μm

Insulation Height

0.232 5.90mm

Montaj

Through Hole

Contact Gender

Female

RoHS Durumu

RoHS Compliant

Contact Type

Female Socket

Style

Board to Board or Cable

Contact Materials

Phosphor Bronze

Nominal Gerilim

30VAC

Housing Color

Black

Contact Finish Mating

Tin

Contact Length Post

0.118 3.00mm

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Plastic

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Fastening Type

Friction Lock

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Sıra Sayısı

1

Seri

DF3

Montaj Tipi

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2004

Kurşunsuz

Lead Free

HTS Kodu

8536.69.40.40

Pozisyon Sayısı

10

Lead Pitch

2mm

Çalışma Sıcaklığı

-30°C~85°C

Connector Type

Receptacle

Fabrika Tedarik Süresi

12 Weeks

Terminal

Solder

ECCN Kodu

EAR99

Stack Height Mating

6.6mm 7.5mm

Parça Durumu

Active

Akım Değeri

3A
