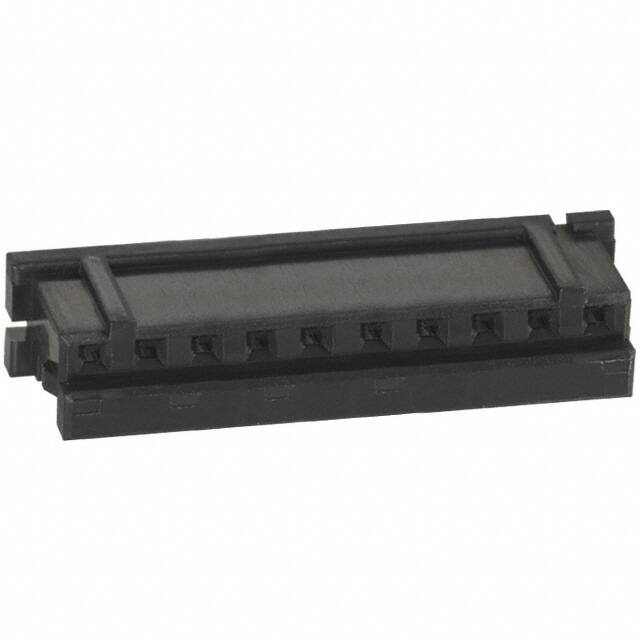

DF3-10S-2C

Teknik Özellikler

Contact Type

Female Socket

Polarization Key

HOUSING SIDE

Contact Resistance

30mOhm

RoHS Durumu

RoHS Compliant

Mounting Option1

LOCKING MECH

Kurşunsuz Kodu

yes

Orientation

Straight

Additional Feature

LOW PROFILE

Total Number Of Contacts

10

REACH Uyumluluk Kodu

unknown

Option

WITH CABLE ASSEMBLY

Reach Svhc

No SVHC

Mixed Contacts

NO

Pozisyon Sayısı

10

Body Depth

0.268 inch

Note

Contacts Not Included

Din Conformance

NO

Operating Temperature Max

85°C

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Wire Size Min

28 AWG

Operating Temperature Min

-30°C

Yayın Yılı

2008

Seri

DF3

Voltage Rated Ac

30V

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

NOT SPECIFIED

Renk

Black

Filter Feature

NO

Ul Flammability Code

94V-0

Reference Standard

UL, CSA

Reliability

COMMERCIAL

Wire Size Max

22 AWG

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Mil Conformance

NO

Contact Termination

Crimp

Parça Durumu

Active

Insulation Resistance

1GOhm
