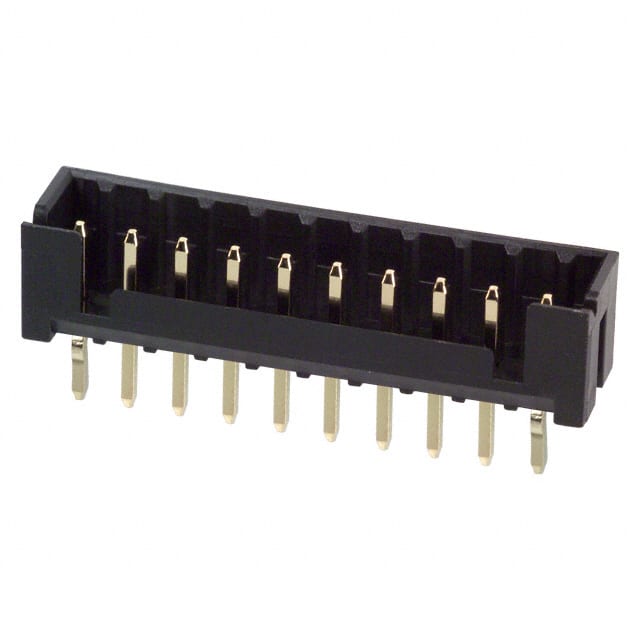

DF3-10P-2DSA(01)

Teknik Özellikler

Insulation Materials

Polyamide (PA), Nylon

Montaj Tipi

Through Hole

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Housing Material

Polyamide

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Sıra Sayısı

1

Contact Shape

Square

Fastening Type

Push-Pull

Iec Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

650VAC V

Contact Lengthmating

0.122 3.10mm

Parça Durumu

Active

Mil Conformance

NO

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

Çalışma Sıcaklığı

-55°C~105°C

Reliability

COMMERCIAL

Mating Contact Pitch

0.079 inch

Reference Standard

UL, CSA

Ul Flammability Code

94V-0

Filter Feature

NO

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass

Rated Current Signal

3A

Number Of Conductors

ONE

Insertion Forcemax

4.3924 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

DF3

Yayın Yılı

2004

Contact Length Post

0.114 2.90mm

Pitch Mating

0.079 2.00mm

ECCN Kodu

EAR99

Terminal

Press-Fit, Solder

Connector Type

Header
