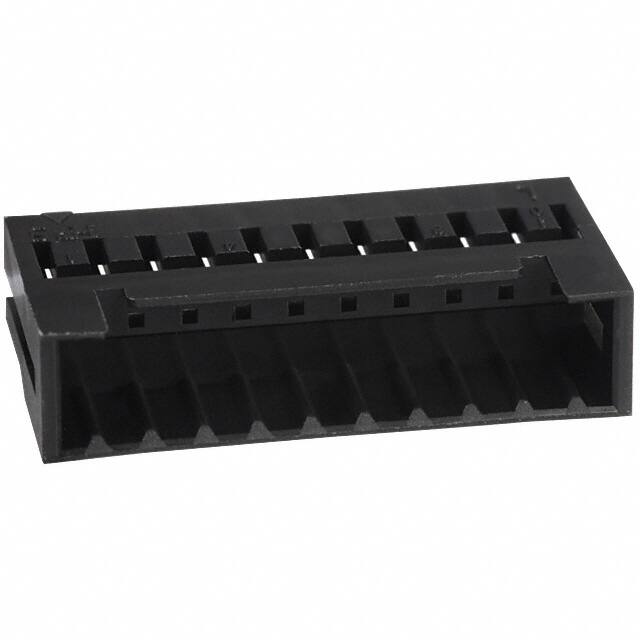

DF3-10EP-2C

Teknik Özellikler

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

4.3924 N

Contact Materials

BRASS

Depth

5mm

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Renk

Black

Filter Feature

NO

Reference Standard

UL, CSA

Parça Durumu

Active

Wire Size Max

22 AWG

Mil Conformance

NO

Contact Termination

Crimp

Withdrawl Forcemin

.3058 N

Lead Pitch

2mm

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Montaj Tipi

Free Hanging (In-Line)

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Iec Conformance

NO

Sıra Sayısı

1

Housing Material

Polyamide

Contact Finish Mating

TIN

Nominal Gerilim

100V

Yükseklik

5mm

Kurşunsuz Kodu

yes

Contact Type

Male Pin

Uzunluk

22mm

RoHS Durumu

RoHS Compliant

Polarization Key

HOUSING SIDE

Contact Gender

Male

Montaj

Free Hanging

Total Number Of Contacts

10

Orientation

Straight

Option

WITH CABLE ASSEMBLY

REACH Uyumluluk Kodu

unknown

Operating Temperature Max

85°C

Genişlik

11.1mm
