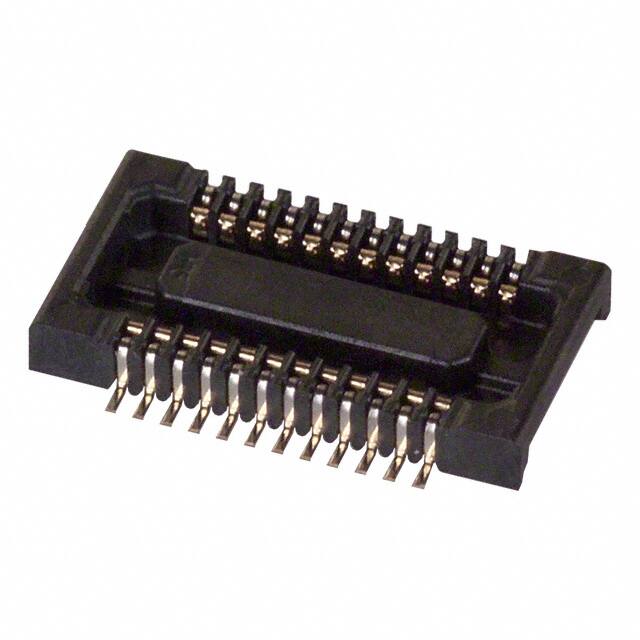

DF30FC-24DS-0.4V(81)

Teknik Özellikler

Contact Gender

FEMALE

Montaj

Surface Mount

Additional Feature

LOW PROFILE

Total Number Of Contacts

24

Number Of Pcb Rows

2

Insulator Color

BLACK

REACH Uyumluluk Kodu

unknown

Option

GENERAL PURPOSE

Nominal Gerilim

30V

Height Above Board

0.035 0.88mm

Body Breadth

0.18 inch

Kurşunsuz Kodu

yes

Durability

50 Cycles

Contact Finish

Gold

Contact Resistance

100mOhm

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

85°C

Seri

DF30

Pcb Contact Row Spacing

4.1656 mm

JESD-609 Kodu

e4

Akım Değeri

300mA

Connector Type

Receptacle, Outer Shroud Contacts

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Stack Height Mating

0.9mm

Terminal

SMD/SMT

Mixed Contacts

NO

Body Depth

0.035 inch

Pozisyon Sayısı

24

Din Conformance

NO

Stack Height

900μm

Reliability

COMMERCIAL

Filter Feature

NO

Ul Flammability Code

94V-0

Reference Standard

UL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Contact Materials

Bronze

Rated Current Signal

0.3A

Contact Pattern

RECTANGULAR
