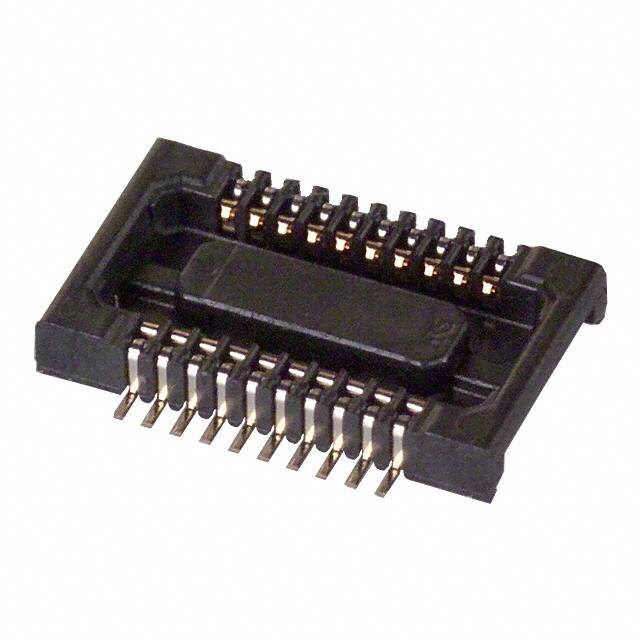

DF30FC-20DS-0.4V(82)

Teknik Özellikler

Depth

3.76mm

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Gender

Receptacle

Rated Current Signal

0.3A

Contact Materials

Bronze

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL

Stack Height

900μm

Reliability

COMMERCIAL

Min. Çalışma Sıcaklığı

-35°C

Contact Finish Thickness

2.00μin 0.051μm

Mil Conformance

NO

Lead Pitch

400μm

Dielectric Withstanding Voltage

100VAC V

Max Current Rating

300mA

Parça Durumu

Active

Insulation Resistance

50000000Ohm

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

Ambalaj

Tape & Reel (TR)

Max Voltage Rating Ac

30V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.016 0.40mm

Sıra Sayısı

2

Housing Material

Polymer

Kurşunsuz

Lead Free

Contact Style

BELLOWED TYPE

Montaj Tipi

Surface Mount

Uzunluk

6.22mm

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

85°C

Contact Resistance

100mOhm

Polarization Key

POLARIZED HOUSING

Height Above Board

0.035 0.88mm

Flammability Rating

UL94 V-0

Nominal Gerilim

30V

Housing Color

Black
