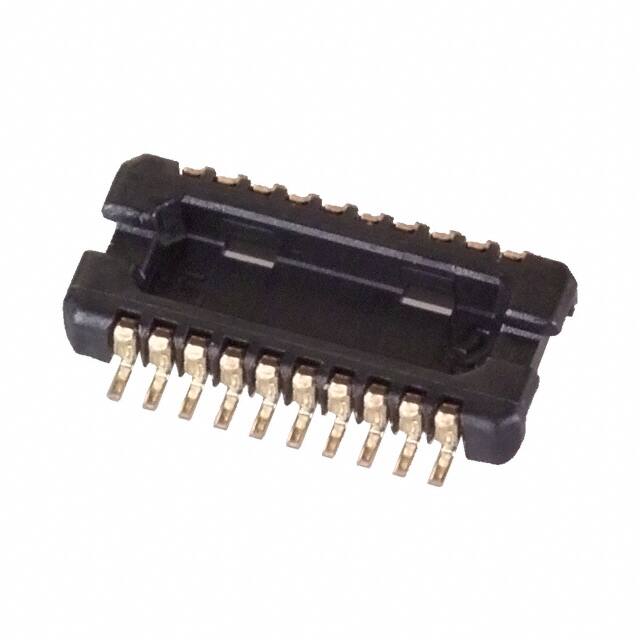

DF30FC-20DP-0.4V(82)

Teknik Özellikler

Height Above Board

0.031 0.80mm

Contact Finish

Gold

Kurşunsuz Kodu

yes

Durability

50 Cycles

Body Breadth

0.091 inch

Mounting Option1

LOCKING

RoHS Durumu

RoHS Compliant

Contact Resistance

100mOhm

Polarization Key

POLARIZED HOUSING

Contact Gender

MALE

Total Number Of Contacts

20

Additional Feature

LOW PROFILE

Option

GENERAL PURPOSE

Insulator Color

BLACK

Number Of Pcb Rows

2

Operating Temperature Max

85°C

JESD-609 Kodu

e4

Stack Height Mating

0.9mm

Connector Type

Header, Center Strip Contacts

Fabrika Tedarik Süresi

10 Weeks

Mixed Contacts

NO

Din Conformance

NO

Body Depth

0.031 inch

Pozisyon Sayısı

20

Seri

DF30

Operating Temperature Min

-35°C

Bodyshell Style

PLUG

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Rated Current Signal

0.3A

Contact Materials

PHOSPHOR BRONZE

Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL

Dielectric Withstanding Voltage

100VAC V

Insulation Resistance

50000000Ohm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR
