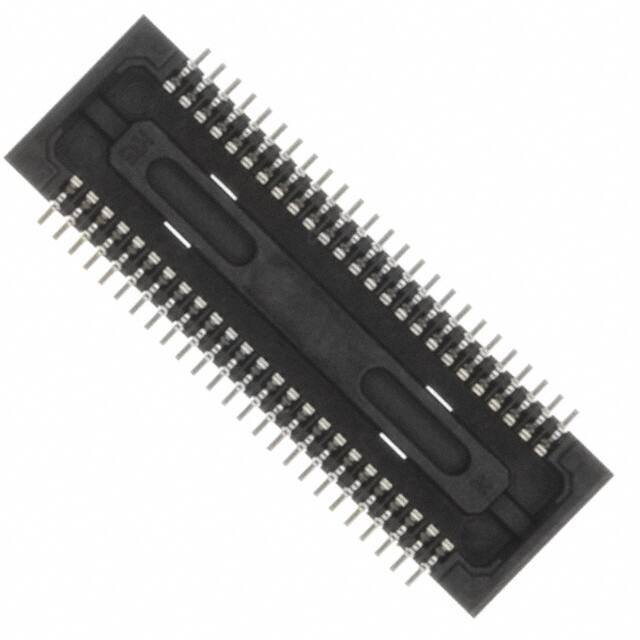

DF30FB-50DS-0.4V(81)

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

100VAC V

Parça Durumu

Active

Mil Conformance

NO

Contact Finish Thickness

2.00μin 0.051μm

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Montaj Tipi

Surface Mount

Body Length Or Diameter

0.439 inch

Sıra Sayısı

2

Pitch

0.016 0.40mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Iec Conformance

NO

Contact Materials

PHOSPHOR BRONZE

Rated Current Signal

0.3A

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Reference Standard

UL

Ul Flammability Code

94V-0

Filter Feature

NO

Stack Height Mating

0.9mm

Terminal

SMD/SMT

Connector Type

Receptacle, Outer Shroud Contacts

Fabrika Tedarik Süresi

10 Weeks

JESD-609 Kodu

e4

Operating Temperature Max

85°C

Din Conformance

NO

Body Depth

0.035 inch

Pozisyon Sayısı

50

Mixed Contacts

NO

Seri

DF30

Pcb Contact Row Spacing

4.1656 mm

Operating Temperature Min

-35°C

Contact Finish

Gold

Body Breadth

0.18 inch

Kurşunsuz Kodu

yes

Height Above Board

0.035 0.88mm

RoHS Durumu

RoHS Compliant
