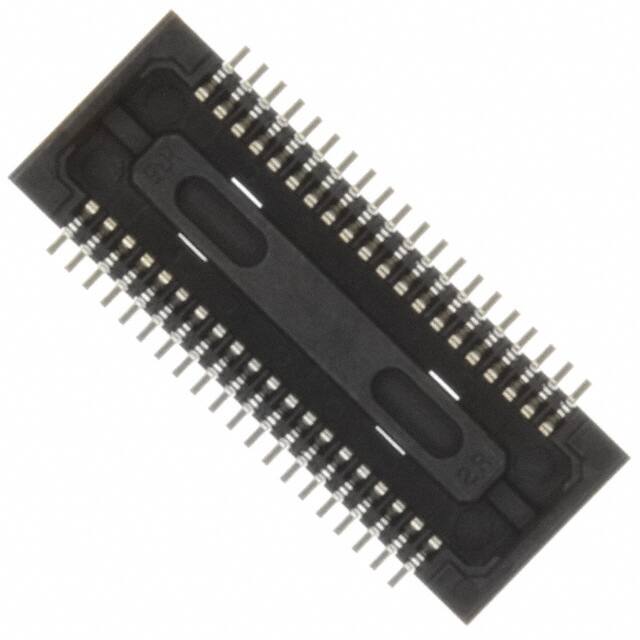

DF30FB-40DS-0.4V(82)

Teknik Özellikler

JESD-609 Kodu

e4

Operating Temperature Max

85°C

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle, Outer Shroud Contacts

Stack Height Mating

0.9mm

Terminal

SMD/SMT

Mixed Contacts

NO

Pozisyon Sayısı

40

Body Depth

0.035 inch

Din Conformance

NO

Seri

DF30

Operating Temperature Min

-35°C

Pcb Contact Row Spacing

4.1656 mm

Height Above Board

0.035 0.88mm

Body Breadth

0.148 inch

Kurşunsuz Kodu

yes

Durability

50 Cycles

Contact Finish

Gold

Contact Resistance

100mOhm

Özellikler

Solder Retention

RoHS Durumu

RoHS Compliant

Contact Gender

FEMALE

Montaj

Surface Mount

Additional Feature

LOW PROFILE

Total Number Of Contacts

40

Number Of Pcb Rows

2

Insulator Color

BLACK

REACH Uyumluluk Kodu

unknown

Option

GENERAL PURPOSE

Parça Durumu

Active

Insulation Resistance

50000000Ohm

Dielectric Withstanding Voltage

100VAC V

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness

2.00μin 0.051μm

Mil Conformance

NO

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Contact Style

BELLOWED TYPE

Montaj Tipi

Surface Mount

Sıra Sayısı

2

Iec Conformance

NO
