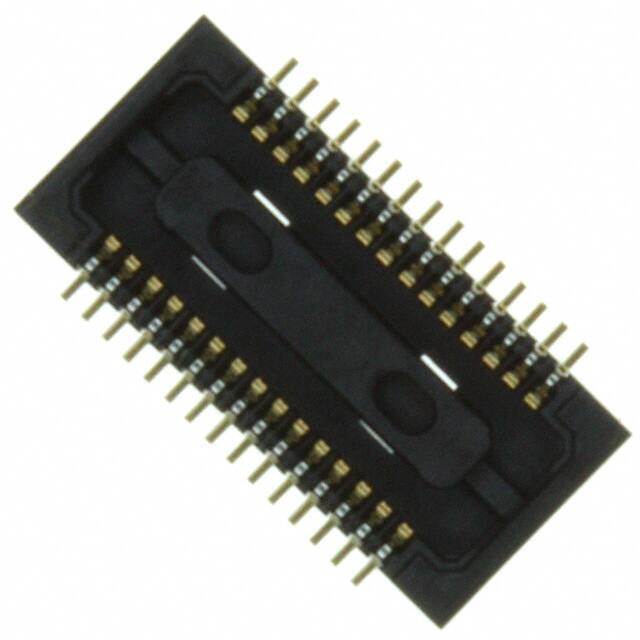

DF30FB-30DS-0.4V(82)

Teknik Özellikler

Mil Conformance

NO

Min. Çalışma Sıcaklığı

-35°C

Contact Finish Thickness

2.00μin 0.051μm

Pcb Contact Pattern

RECTANGULAR

Max Current Rating

300mA

Parça Durumu

Active

Insulation Resistance

50000000Ohm

Dielectric Withstanding Voltage

100VAC V

Housing Material

Polymer

Sıra Sayısı

2

Pitch

0.016 0.40mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

30V

Ambalaj

Tape & Reel (TR)

Iec Conformance

NO

Montaj Tipi

Surface Mount

Contact Style

BELLOWED TYPE

Kurşunsuz

Lead Free

HTS Kodu

8536.69.40.40

Contact Pattern

RECTANGULAR

Depth

3.76mm

Contact Materials

Bronze

Rated Current Signal

0.3A

Gender

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Reference Standard

UL

Filter Feature

NO

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Stack Height

900μm

Pozisyon Sayısı

30

Din Conformance

NO

Mixed Contacts

NO

Connector Type

Receptacle, Outer Shroud Contacts

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Stack Height Mating

0.9mm

Terminal

SMD/SMT

Akım Değeri

300mA
