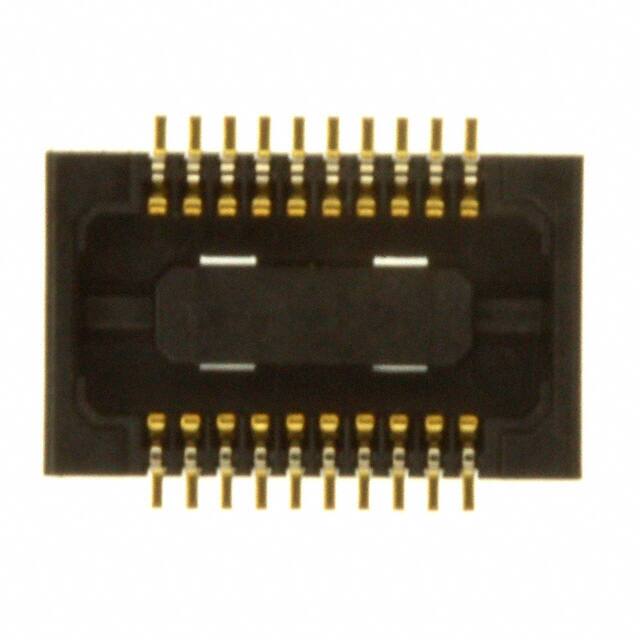

DF30FB-20DS-0.4V(82)

Teknik Özellikler

Mixed Contacts

NO

Din Conformance

NO

Body Depth

0.035 inch

Pozisyon Sayısı

20

Operating Temperature Max

85°C

JESD-609 Kodu

e4

Akım Değeri

300mA

Terminal

SMD/SMT

ECCN Kodu

EAR99

Stack Height Mating

0.9mm

Connector Type

Receptacle, Outer Shroud Contacts

Fabrika Tedarik Süresi

10 Weeks

Operating Temperature Min

-35°C

Pcb Contact Row Spacing

4.1656 mm

Seri

DF30

RoHS Durumu

RoHS Compliant

Özellikler

Solder Retention

Contact Resistance

100mOhm

Height Above Board

0.035 0.88mm

Nominal Gerilim

30V

Contact Finish

Gold

Kurşunsuz Kodu

yes

Durability

50 Cycles

Body Breadth

0.148 inch

Total Number Of Contacts

20

Additional Feature

LOW PROFILE

Option

GENERAL PURPOSE

Insulator Color

BLACK

Number Of Pcb Rows

2

Montaj

Surface Mount

Reach Svhc

Unknown

Contact Finish Thickness

2.00μin 0.051μm

Mil Conformance

NO

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

100VAC V

Insulation Resistance

50000000Ohm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

Ambalaj

Tape & Reel (TR)
