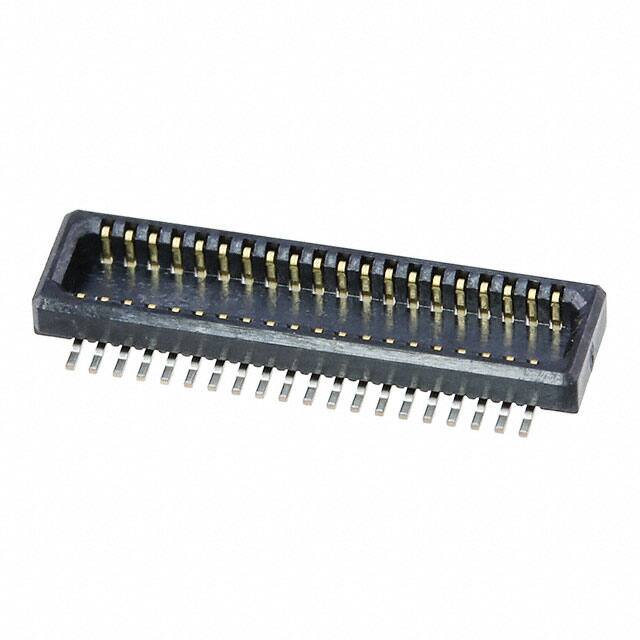

DF23C-40DP-0.5V(92)

Teknik Özellikler

Sıra Sayısı

2

Maks. Çalışma Sıcaklığı

85°C

Contact Finish

Gold

Contact Materials

Bronze

Dielectric Withstanding Voltage

150VAC V

Montaj

Surface Mount

Montaj Tipi

Surface Mount

RoHS Durumu

RoHS Compliant

Terminal

SMD/SMT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Additional Feature

LOW PROFILE

Akım Değeri

300mA

Min. Çalışma Sıcaklığı

-35°C

Kurşunsuz Kodu

yes

Kurşunsuz

Lead Free

Number Of Pcb Rows

2

Filter Feature

NO

Option

GENERAL PURPOSE

JESD-609 Kodu

e3

Contact Resistance

60mOhm

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

Contact Style

BELLOWED TYPE

Parça Durumu

Active

Nominal Gerilim

50V

Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown

Total Number Of Contacts

40

Pitch

0.020 0.50mm

Number Of Conductors

ONE

Row Spacing

4.3 mm

Stack Height Mating

1.5mm

ECCN Kodu

EAR99

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Plug, Outer Shroud Contacts

Rated Current Signal

0.3A

Fabrika Tedarik Süresi

10 Weeks

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500MOhm
