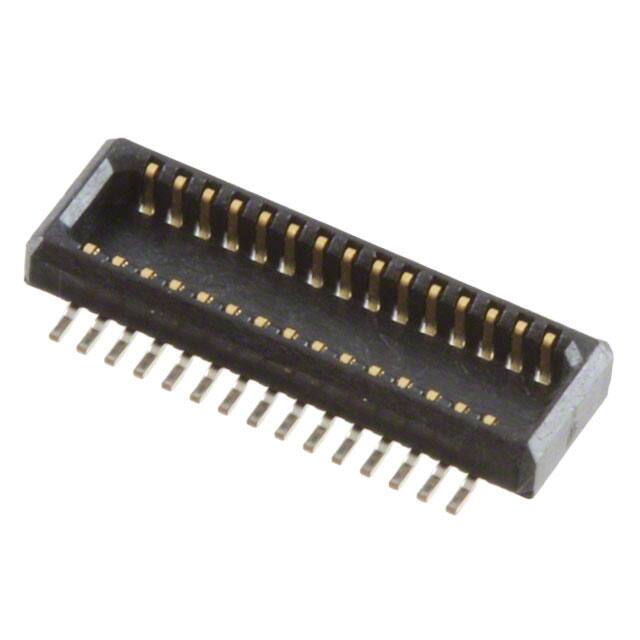

DF23C-30DP-0.5V(92)

Teknik Özellikler

Height Above Board

0.047 1.20mm

Durability

50 Cycles

Seri

DF23

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Mil Conformance

NO

Housing Material

Polymer

Orientation

Straight

Contact Gender

Male

Housing Color

Black

Pozisyon Sayısı

30

Reliability

COMMERCIAL

Mixed Contacts

NO

Contact Pattern

RECTANGULAR

Din Conformance

NO

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500MOhm

Reference Standard

UL

Stack Height Mating

1.5mm

Row Spacing

4.3 mm

Fabrika Tedarik Süresi

10 Weeks

Rated Current Signal

0.3A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Plug, Outer Shroud Contacts

Pitch

0.020 0.50mm

Total Number Of Contacts

30

Number Of Conductors

ONE

Nominal Gerilim

50V

Insulation

Insulated

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Flammability Rating

UL94 V-0

Contact Style

BELLOWED TYPE

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

Option

GENERAL PURPOSE

Filter Feature

NO

Number Of Pcb Rows

2

Kurşunsuz

Lead Free
